Detailed Description
lead-acid battery ,
drive around 2 hours in fully charged.
charging time: about 9hours
1)Motor:72V,7KW
2)Motor model: BLT7/11-2800/72
3)Charger: 72V, 9A
4)Storage battery:72V,80Ah(12V,20Ah*24)
5)DC-DC:72V-13.7V/300W
6)Peak power: 14KW
7)Rated revolution:2800r/min
8)Maximum rated revolution: 4000r/min
9) Ingress protection: IP55
10)Insulation Lever: F
11)Max. speed : 80 km/h
12)Brakes: disc brakes; foot brake
13)Cooling way: Air-cooling
14)Wheel bases: 1530mm
15)Distance between front wheels:1435mm
16)Minimum ground clearance: 160mm
17)Tyre Specification: Front-165; Rear-70R13
18)Wheel hubs: aluminium
19)Max loading: 150 kg
)Packaging:Carton with steel frame 2)Quantity:1/ctn 3)N.W.: 395kg
4)Overall size: 2390x1650x1250mm
5)Carton dimensions: 2330x1300x810mm
6)Conveyance: Qty/20' FCL: 8pcs
Qty/40' HQ: 27pcs

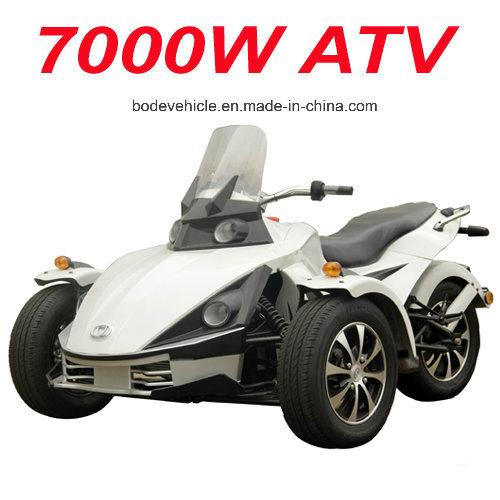

Product Image
