2018 Newest Design Electric Hand Bike Handcycle Wheelchair Attachment

2017 Newest Design Electric Handcycle /Wheelchair Attachment for Sale

wheelchair drive units

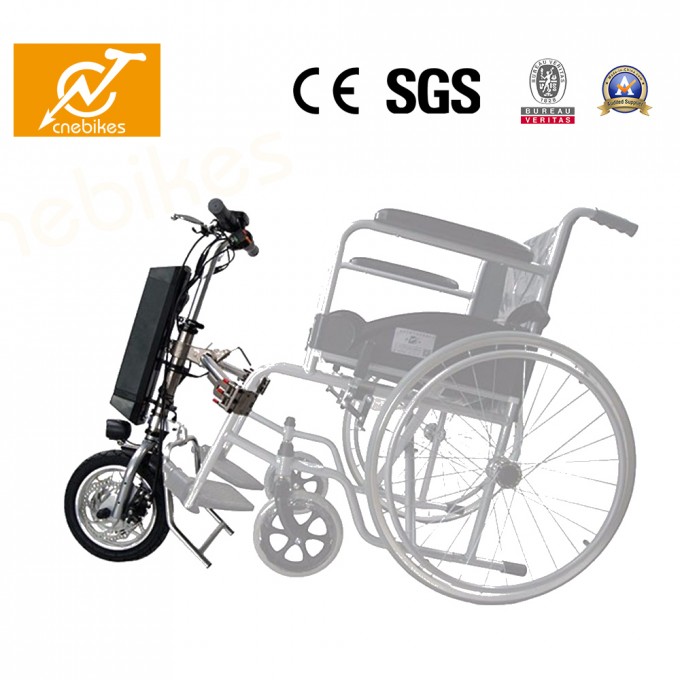

It can be connected with most of the manual wheelchairs very quickly and easily.Just need a simple operation to connect the trailer with your wheelchair so as to make your manual wheelchair electriced.

When you needn't use it or once battery run out, it's easy to separate the trailer from your wheelchair in a few minutes and remain the manual wheelchair's function. The trailer make the connection of manual wheelchair and electric one to become realization .


Technical Parameters

frame Material: Aluminum alloy frame
Motor :36V 350W in wheel motor
Battery :36V 8.8ah thunder type
Controller:Intelligent controller
Charger:AC 100V-240V,2amps smart charger
Tyre :KENDA 12½*2.4
Speed Limit:20km/h
Brake :Disc-brake;Hand brake
Light :Front LED light with horn
Display :LCD005 display
Throttle:Half-twist throttle

Details Description :

1. Motor
36v 350w brushless geared motor with waterproof cables

2. Battery
36v 8.8ah /36v 10.4ah /36v 11.6ah lithium battery for choosing

3. Disc Brake system

4.KT-LCD5 display
four level : 1: 12km/h 2: 16km/h 3---20km/h -1 : go backward 6km/h you can set any speed you want5.Tyre : 12 1/2 *2.4

The attachable electric handcycle transforms your wheelchair into high performance machine that can
increase your mobility
Electric handcycle that snaps on to your wheelchair.Go twice as fast and twice as far as a power wheelchair!

♥Warranty

Motor--->2 years(guarantee replacement in first year, guarantee repair in the next year.

Battery---->1years(guarantee replacement.)

Oher parts---->half an year

♥Technical Parameters

frame	Aluminum alloy frame	Motor	36v 350w in-wheel motor
Battery	36v 8.8ah thunder type(10.4ah optional)	Controller	Intelligent controller
Tyre	KENDA 12½*2.4	Speed limit	20km/h
Brake	Disc-brake,hand brake	Light	Front led light with horn
Display	LCD005	Throttle	half twist throttle
Charger	2amps	Weight	14kgs

Detailed pictures:








Company Show :


Our service:
In-sale Services:
1.Try best to meet the reasonable demands by customers;
2.Keep close touch with our clients during the period of installation;
3.Cooperate friendly with client and satisfy our clients with best quality electric bike .

After-sale Services:
1.We provide free training to our customers on how to install and use ebike .
2.Provide 2-year guarantee for normal products free;
3.A complete after-sale service system to help customers resolve the problems during the using time;
4.Regular follow-up service to our customers, solicit opinions from clients and improve the improvement.

FAQ:

Q: Can Iget some samples?
A: Yes, sample order is available for quality check and market test.


Q: What's the delivery time?
A: It usually takes about 25-40 working days for production based on specifications for you order and quantity.


Q: What's your payment terms?
A: We usually accept T/T or L/C at sight as the main payment terms, and other payment can also be negotiated.


Q: What's your warranty terms?
A: We offer different warranty time for different components, please contact us for details.


Q: Do you have the products in stock?
A: No, all fat tire electric bike will be newly produced according to your order including samples.


Q: Can Imix different models in one container?
A: Yes, different models can be mixed up in one full container.


Q: How does your factory do regarding the quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the of the
production. Every product will be fully assembled and carefully tested before packing and shipping.
