Marine Six Rollers Mooring Fairlead for Sale

New Maritime ShipSteel Mooring roller fairlead have high quality and competitive price.we are dedicated to provide excellent product quality at reasonable price and on time delivery. Our products are manufactured to the highest quality standards and approved by the major marine classification bodies such asLR,ABS,GL,NK, CCS,DNV,BV, EC etc.

Thedescriptionofproduct

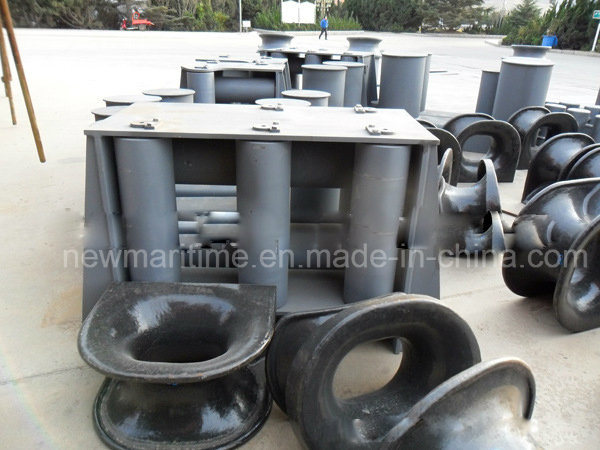

Roller Fairlead

Roller fairlead on the ship very large. Fairlead is mounted on the deck of the ship, guide rope device while docking use.

Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.

Fairleads are provided horizontal, vertical, diagonal ribs to increase stiffness and fairleads strength. Fairlead compact structure, reasonable openings, except for ordinary vessels towing or mooring, but also for navigation in the canal waterway ship is towed or moored.

Hi-sea Group supply all kinds of roller fairlead .Quality management and product strict according to IACS requirement.DIN,JIS standard.

Can according to as customer requirement,design 3 rollers to 10 rollers fairlead.

Apply Wire diameter from 19.5mm--68mm

Apply Rope diameter from 36mm---100mm

1>Material selection:

Q235 steel plate

2> Excellent after-sales service:

A> 2years warranty again the manufacture defect ofdomestic main ports, offer lifetime consultation on problems occurred.

B> Report on the making process.

Technical requirements:

NOMINAL DIA	frame
	B	B1	b	b1	b2	D	D1	D2	D3	H	h	h1	h2	L	L1	I	I1	I2
140	310	2355	150	69	20	90	140	120	80	480	275	130	40	515	805	335	120	60
160	360	405	175	82	22	110	160	140	90	515	290	145	45	570	890	365	135	65
180	410	455	200	95	24	135	180	150	100	560	315	155	50	620	960	390	145	70
200	460	505	225	108	26	2160	200	160	110	590	330	170	60	675	1049	420	160	80
250	565	610	280	133	30	200	250	200	130	715	415	195	75	825	1303	520	210	105
315	670	715	330	159	34	240	300	240	160	870	520	220	90	980	1562	620	260	130

NOMINAL DIA	frame								APPLICABLEWIRE ROPE DIA	OPENING DIA (LONG*WIDE)	WEIGHT kg
	I3	I4	R	T	t1	t2	t3	t4
140	50	20	40	12	10	16	6	20	18	148*195	187
160	50	20	45	14	10	18	8	22	22.4	150*200	277
180	50	20	50	16	10	20	10	24	25	150*199	387
200	50	20	60	18	12	22	10	26	28	152*204	510
250	60	25	75	20	14	26	12	30	35.5	199*253	900
315	60	25	90	22	16	30	14	34	42.5	253*302	1232

PackingOur product usally packed bysteel palletwith film outside.
If you need,non fumigationwooden pallets, boxes and nudeare all availiable.
Packing size will acording to qty. One package may consist of one, two or four products. Generally speaking, we'll control the weight less than 1.5T

DeliveryFrom factory to loading port: COFC (Container on flat car) or trailer.
From loading port to destination port: by sea (if neccessory, other ways are also accepatble).

Our Company

We supply products for Offshore Project, Quay Construction and Shipbuilding Industry.

Chongqing New maritimeis leading distributor of marine products, including:

Anchor Chain and Accessories

Mooring Chain and Accessories

Marine and Offshore Anchors

Mooring Buoys and Mooring System

Rubber Fenders

Container Lashing Products

Deck Outfittings

Lifting and Rigging Products

We manufacture: Offshore Mooring Chain, Marine Anchor Chain, Steel Structured Anchors, Steel Structured Buoys and its Mooring System, Dock Rubber Fenders.

Meanwhile, we are sales repsentative of other big factories, products mainly include Pneumatic Rubber Fenders, Marine Mooring Ropes, Deck Out-fittings and Steel Wire Ropes.

We are ISO9001 Quality Control System approval, and approved by ABS, BV, LR, DNV, GL, NK, KR, CCS, RINA and other IACS class societies.



After sales service:
After receive the goods, We accept ur feedback at first time.
We could provide installation guide, if you have need, we could give you global service.
