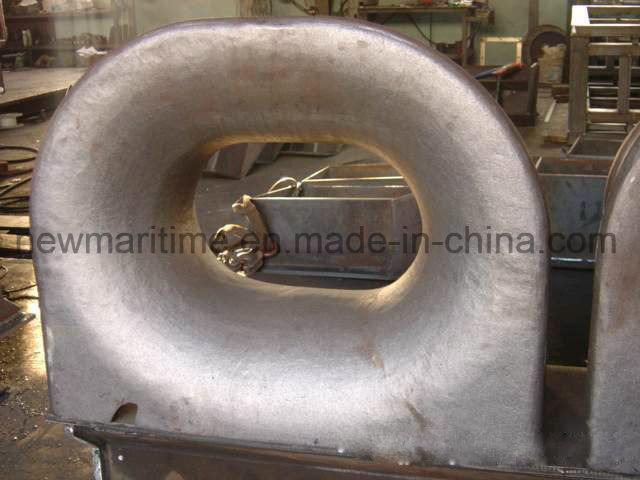

Marine Mooring Closed Chock,Panama Boat Chock
SWL:20-320KN
Mass:29-840kgs
PanamaChock DIN81915 Type C
Product Description
Mounting type:bulwark mounted, deck mounted
Inner diameter:150mm to 300mm
Outer diameter:318mm to 510mm
Height of the chock:144mm to 179mm
Wire diameter:18mm to 24mm
Mass weight:18kg to 46kg
Technology Details:
Quality:ISO9001:2000, OEM&ODM,CNC control
Surface: High corrosion-resistance , MirrororSatinpolished,Galvanized
Material: Stainlesssteel-AISI316AISI304,alloycastingandcarbonsteel
Technics: PrecisionCast
Shape: Oval/Circumference/circle
Thechocks are widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc.
Specification:
ProductNo. | SWL(KN) | Dimension(mm) | Mass(kgs) | |||||||
L | W | H | H1 | A | B | |||||
001 | 20 | 360 | 200 | 316 | 158 | 160 | 115 | 29 | ||
002 | 30 | 450 | 250 | 390 | 195 | 200 | 140 | 48 | ||
003 | 50 | 550 | 300 | 480 | 240 | 250 | 180 | 85 | ||
004 | 80 | 680 | 360 | 586 | 293 | 320 | 225 | 136 | ||
005 | 125 | 840 | 440 | 710 | 355 | 400 | 270 | 211 | ||
006 | 200 | 1020 | 520 | 840 | 420 | 500 | 320 | 256 | ||
007 | 320 | 1300 | 700 | 1100 | 550 | 600 | 400 | 840 | ||
We are in business to give you the highest quality products at the very best prices, with timely shipping and outstanding customer service. It is our goal to keeping you as a satisfied and loyal customer!
Package:
Wealsoprovidemarinechocksinbulwarkmountedtypeanddeckmountedtypeasfollowings:
BulwarkMounted | DeckMounted |
JISF-2007TypeA | JISF-2005 |
JISF-2007TypeB | JISF-2017TypeAC |
JISF-2017TypeBC | DIN81915TypeC |
JISF-2030TypeA | NS2588 |
DIN81915Type A | NS2590 |
DIN81915TypeC | CB 34-76 |
NS2587 | CB 34-2007 |
NS2589 | Panama Chock |
Square Chock | EU Type |
Spanish Type | |
Open Chock |
