Ship Marine Casting Steel Towing Chock Type EU with Classification Society Approval (HT-C08)

Towing chock adopts the high quality marine cast steel ZG230450C refining, the use of advanced technology and processing methods, products reach the China Classification Society standards. According to customer requirements to provide CCS, NK, DNV, LR certification, such as the required certificate, please call the Advisory include certificate price.

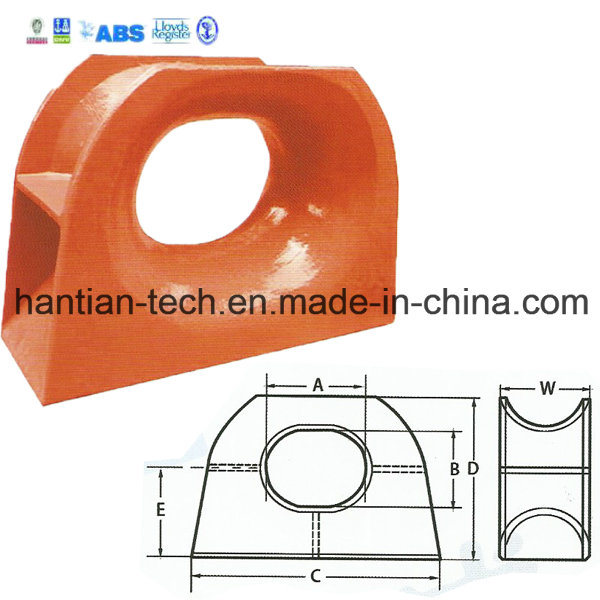

Towing chock specification:

TOWING CHOCK TYPE EU
WEIGHT(KG)	MODEL NO	SIZE(mm)
		A	B	C	D	E	H
230	315*250	315	250	815	620	365	380
278	425*280	425	280	1075	785	450	500
608	500*400	500	400	1340	900	506	560
500	500*400L	500	400	1238	840	467	450
598	600*315	600	315	1360	865	507	560
820	600*450	600	450	1360	1000	575	560
1200	600*450L	600	450	1560	1200	675	760
1430	800*600	800	600	1700	1160	640	580

1.PANAMA CHOCK(TYPE AC)
2.PANAMA CHOCK TYPE BC
3.PANAMA CHOCK TYPE U.S.
4.DIN81951 CHOCKS TYPE A
5.DIN81951 CHOCKS TYPE C
6.ISO 13728 PANAMA CHOCK TYPE A
7.ISO 13728 PANAMA CHOCK TYPE B
8.TOWING CHOCK TYPE EU
9.JIS F2030 SINGLE POIT MOORING PIPES TYPE A
10.JIS F2030 SINGLE POIT MOORING PIPES TYPE B

Thesizeanddesigncanbecustomized.
