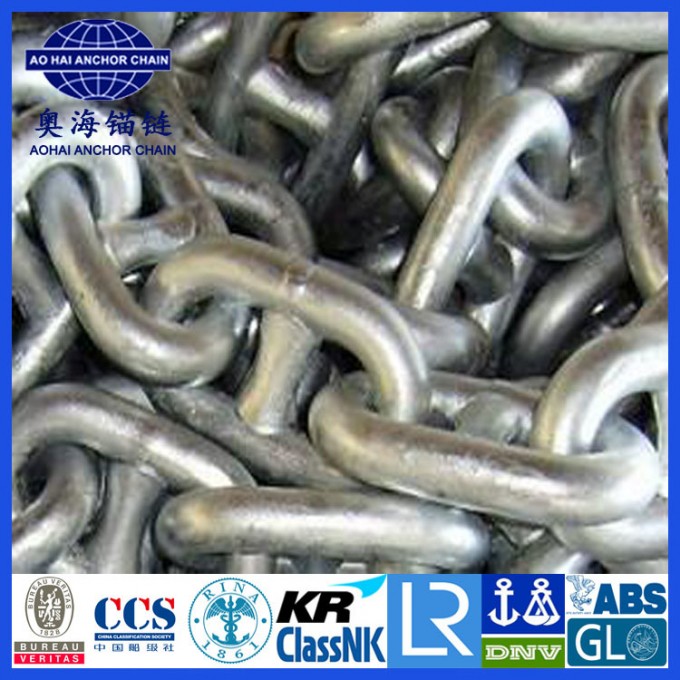

87mm Anchor Chain Steel Marine Chain

Detail parameter:

Dia.	Proof load(KN)			Breaking load(KN)			Weight
MM	U1	U2	U3	U1	U2	U3	KG/M
11	36	52	72	52	72	102	2.65
12.5	46	66	92	66	92	132	3.42
14	58	82	116	82	116	165	4.29
16	76	107	150	107	150	216	5.61
17.5	89	127	179	127	179	256	6.71
19	105	150	211	150	211	301	7.91
20.5	123	175	244	175	244	349	9.20
22	140	200	280	200	280	401	10.60
24	167	237	332	237	332	478	12.61
26	194	278	389	270	389	556	14.80
28	225	321	449	321	449	642	17.17
30	257	368	514	368	514	735	19.71
32	291	417	583	417	583	833	22.43
34	328	468	655	468	655	937	25.32
36	366	523	732	523	732	1050	28.38
38	405	581	812	581	812	1190	31.62
40	448	640	896	640	896	1280	35.04
42	492	703	981	703	981	1400	38.63
44	538	769	1080	769	1080	1540	42.40
46	585	837	1170	837	1170	1680	46.34
48	635	908	1270	908	1270	1810	50.46
50	685	981	1370	981	1370	1960	54.75
52	739	1060	1480	1060	1480	2110	59.22
54	794	1140	1590	1140	1590	2270	63.86
56	851	1220	1710	1220	1710	2430	68.68
58	909	1290	1810	1290	1810	2600	73.67
60	969	1380	1940	1380	1940	2770	78.84
62	1030	1470	2060	1470	2060	2940	84.18
64	1100	1560	2190	1560	2190	3130	89.70
66	1160	1660	2310	1660	2312	3300	95.40
68	1230	1750	2450	1750	2450	3500	101.30
70	1290	1740	2580	1840	2580	3690	107.30
73	1390	1990	2790	1990	2790	3990	116.71
76	1500	2150	3010	2150	3010	4300	126.50
78	1580	2260	3160	2260	3160	4500	133.20
81	1690	2410	3380	2410	3380	4820	143.69
84	1800	2580	3610	2580	3610	5160	154.53
87	1920	2750	3850	2750	3850	5500	165.76
90	2050	2920	4090	2920	4090	5840	177.39
92	2130	3040	4260	3040	4260	6080	185.36
95	2260	3230	4510	3230	4510	6440	197.56
97	2340	3340	4680	3340	4680	6690	206.06
100	2470	3530	4940	3530	4940	7060	219.00
102	2560	3660	5120	3660	5120	7320	227.85
105	2700	3850	5390	3850	5390	7700	241.45
107	2790	3980	5570	3980	5570	7960	250.73
111	2970	4250	5940	4250	5940	8480	269.83
114	3110	4440	6230	4440	6230	8890	284.61
117	3260	4650	6510	4650	6510	9300	299.79
120	3400	4850	6810	4850	6810	9720	315.36
122	3500	5000	7000	5000	7000	9990	325.96
124	3600	5140	7200	5140	7200	10280	336.73
127	3750	5350	7490	5350	7490	10710	353.23
130	3900	5570	7800	5570	7800	11140	370.11
132	4000	5720	8000	5720	8000	11420	381.59
137	4260	6080	8510	6080	8510	12160	411.04
142	4520	6450	9030	6450	9030	12910	441.59
147	4790	6840	9560	6840	9560	13660	473.24
152	5050	7220	10100	7220	10100	14430	505.98
157	5320	7600	10640	7600	10640	15200	539.81
162	5590	7990	11180	7990	11180	15980	574.74

Our factory :










Product description:

Product name:stud link anchor chain, studless link anchor chain, galvanizedanchor chain, offshore anchor chain, yacht anchor chain, mooring chain

Material: anchor chain carbon steel

Size:12.5mm-162mm

Grade:U2 U3 RQ3 RQ4

Surface:Origional color, blacktreatment, painted, electricgalvanized, hotdipgalvanizedareavailable
ProduceProcess:Drawings→mouldmaking→p-forging→roughmachining orfinishmachining→surfacetreatment→productchecking and quality control→packing→delivery

Certificate:LR, ABS, DNV, BV, NK, GL, RINA,CCS.

Our Certificates:



Any comments or suggestions are well welcomed ,we are always willingly to solve any problems you meet with choosing anchors , chains or other marine products.
