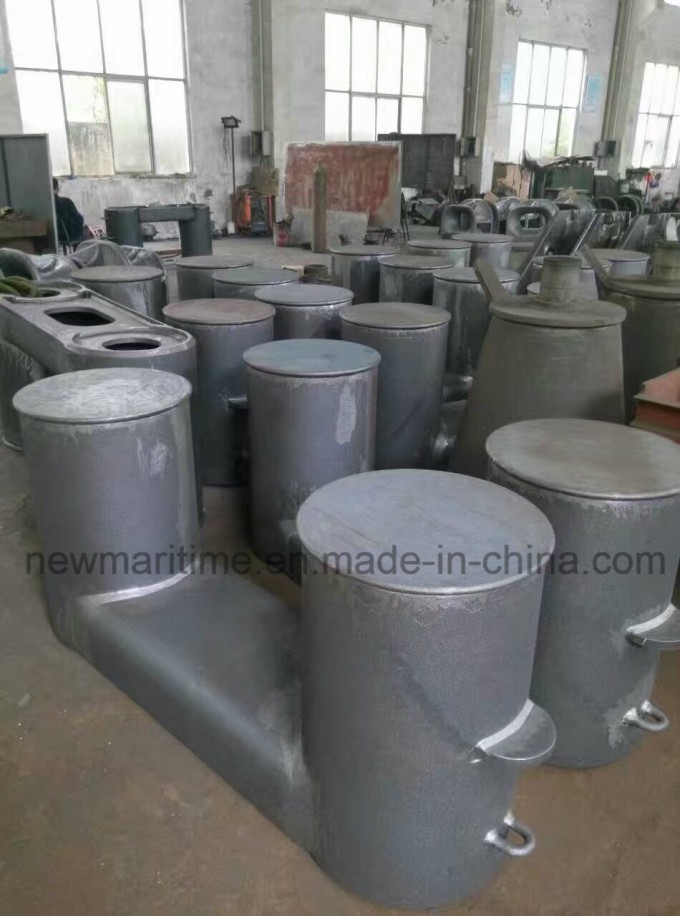

Heavy Type Marine Mooring Double Bitts Bollard

TheMarine Mooring Double Bitts Bollardis apost used on ship's deck or quay. It is a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves and dolphins in ports and harbors. It is welded by qualified steel tubes with plates.

Different types and sizes of the bollards are available, including the single cruciform bollard, double cruciform bollard, NS2584 type bollard, DIN 82607 type bollard, JIS F-2001 type bollard, and other customized type bollard according to the requirement of clients.

1.material: Cast Steel, Cast Iron, Ductile Iron

2.Bollard Capacity: 10~200 Tonnes

3.This bollard is custom made to meet your special application.

4. CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS are available.

ThisproductadoptsthehighqualitymarinecaststeelZG230_450Crefining,theuseofadvancedtechnologyandprocessingmethods,productsreachtheChinaClassificationSocietystandards.AccordingtocustomerrequirementstoprovideCCS,NK,DNV,LRcertification,suchastherequiredcertificate,pleasecalltheAdvisoryincludecertificateprice.(theabovepriceincludesVATprice.)

Companyspirit:thesamequalitythanpriceoffaith,forcustomerstocreatemaximumprofitsandeconomicbenefits.Pleasenewandoldcustomerstopurchase,negotiatecooperation.

KidneyBollard&TeeHeadBollard

Material:CastSteel,CastIron,etc

OptionalMaterial:CastingSteel

BollardCapacity:15Ton~200Ton

SurfaceTreatment:EpoxyCoating

Certificate:CCS,ABS,etc

Thesizeanddesigncanbecustomized.

Features

A. High quality SG iron as standard

B. Strong and durable designs

C. Very low maintenance

D. Large line angles possible

E. Standard and custom anchors available

F. Specification and Type

G. Bollards are manufactured in a wide range of shapes, sizes and capabilities. In general, the type bollard should alwayas well as the general size ( i.e. height, head size, base size, etc) and load capabilitie.

Technical Parameters for MarineCast Steel Deck Double Bitt Mooring Bollards:

Nominal Dia. (mm)	Dimensions (mm)				Max.B.L. of Rope (Ton)	Weight (kg)
	D	H	B	L
100	114	150	165	445	3	19
125	139	190	195	540	4	29
160	165	250	225	670	5	45
200	216	300	290	860	8	80
250	267	380	360	965	12	139
315	318	480	430	1300	20	261
355	355	530	480	1475	26	361
400	406	600	550	1630	32	502
450	457	680	620	1840	39	685
500	508	750	690	2040	46	911
560	558	830	750	2240	56	1208
630	609	940	820	2510	70	1600
710	711	1050	960	2840	82	2252
800	812	1200	1100	3240	100	3071

Our company is specialized in manufacturing and exporting marine equipment.To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to p-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.

Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.

Product Range:Marine Equipemnet, Offshore Equipment & Dock Equipment,etc.

Design Ability:We have a veryexperienced, creative, and cooperative team,which can design the whole propulsion system according to different vessels and requirements.

Machining & Test:We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.

After-sale Service:After receive the goods, We accept yourfeedback at first time.We could provide installation guide, if you have need, we could give you global service.

Packaging & Shipping
I. Packaging Methord:

1. Wooden Csse;

2. Iron frame;

For different shipping methods and destinations, we will suggest different packaging. If you have any requirement for the packaging, please let me know during enquiry.

II. Shipping:

We offer our clients one-stop service. The shipping tool can be by sea, by air or by train. It depends on the destination of our products. And we will suggest you the min. cost and min. damage of the products.
