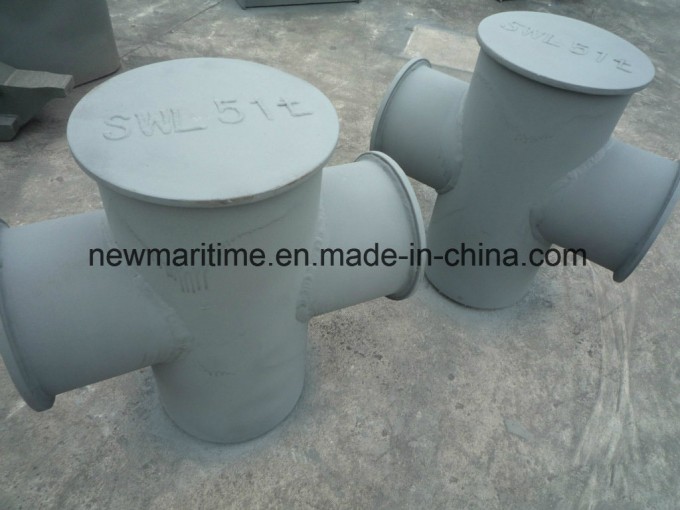

Marine Single Bitt Cross Ship Bollard

TheMarineCast Steel Deck Single Bitt Mooring Bollardis apost used on ship's deck or quay. It is a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves and dolphins in ports and harbors. It is welded by qualified steel tubes with plates.

Different types and sizes of the bollards are available, including the single cruciform bollard, double cruciform bollard, NS2584 type bollard, DIN 82607 type bollard, JIS F-2001 type bollard, and other customized type bollard according to the requirement of clients.

1.material: Cast Steel, Cast Iron, Ductile Iron

2.Bollard Capacity: 10~200 Tonnes

3.This bollard is custom made to meet your special application.

4. CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS are available.

ThisproductadoptsthehighqualitymarinecaststeelZG230-450Crefining,theuseofadvancedtechnologyandprocessingmethods,productsreachtheChinaClassificationSocietystandards.AccordingtocustomerrequirementstoprovideCCS,NK,DNV,LRcertification,suchastherequiredcertificate,pleasecalltheAdvisoryincludecertificateprice.(theabovepriceincludesVATprice.)

Companyspirit:thesamequalitythanpriceoffaith,forcustomerstocreatemaximumprofitsandeconomicbenefits.Pleasenewandoldcustomerstopurchase,negotiatecooperation.

KidneyBollard&TeeHeadBollard

Material:CastSteel,CastIron,etc

OptionalMaterial:CastingSteel

BollardCapacity:15Ton~200Ton

SurfaceTreatment:EpoxyCoating

Certificate:CCS,ABS,etc

Thesizeanddesigncanbecustomized.

Features

A. High quality SG iron as standard

B. Strong and durable designs

C. Very low maintenance

D. Large line angles possible

E. Standard and custom anchors available

F. Specification and Type

G. Bollards are manufactured in a wide range of shapes, sizes and capabilities. In general, the type bollard should alwayas well as the general size ( i.e. height, head size, base size, etc) and load capabilitie.

Technical Parameters for MarineCast Steel Deck SingleBitt Mooring Bollards:

Nominal dia.	Suitable cable's MBL kn(tf)	Suitable cable's max. dia.			H	B	h	D	D1	D2	D3	d
		Steel wire	Synthetic fiber rope	Hemp rope
150	117 (12)	13.0	30	44	480	460	280	168	114	206	158	240
200	225 (26)	19.5	45	64	560	520	320	219	168	260	210	280
250	382 (39)	26.0	56	80	640	610	360	273	219	310	260	340
300	549 (56)	30.0	70	104	680	660	380	325	273	360	310	400
350	686 (70)	34.5	77	120	720	720	420	351	273	400	314	440

Our company is specialized in manufacturing and exporting marine equipment.To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to p-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.

Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.

We offer our clients one-stop service. The shipping tool can be by sea, by air or by train. It depends on the destination of our products.

Product Range:Marine Equipemnet, Offshore Equipment & Dock Equipment,etc.

Design Ability:We have a veryexperienced, creative, and cooperative team,which can design the whole propulsion system according to different vessels and requirements.

Machining & Test:We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.

After-sale Service:You will get theafter-sale service all over the world.Convenient, Fast,High Efficiency, World-wide,etc.

Packaging & ShippingI. Packaging Methord:

1. Wooden Csse;

2. Iron frame;

For different shipping methods and destinations, we will suggest different packaging. If you have any requirement for the packaging, please let me know during enquiry.

II. Shipping:

We offer our clients one-stop service. The shipping tool can be by sea, by air or by train. It depends on the destination of our products. And we will suggest you the min. cost and min. damage of the products.
