Anchor Chain with Military Approvel-Aohai Marine China Largest Factory

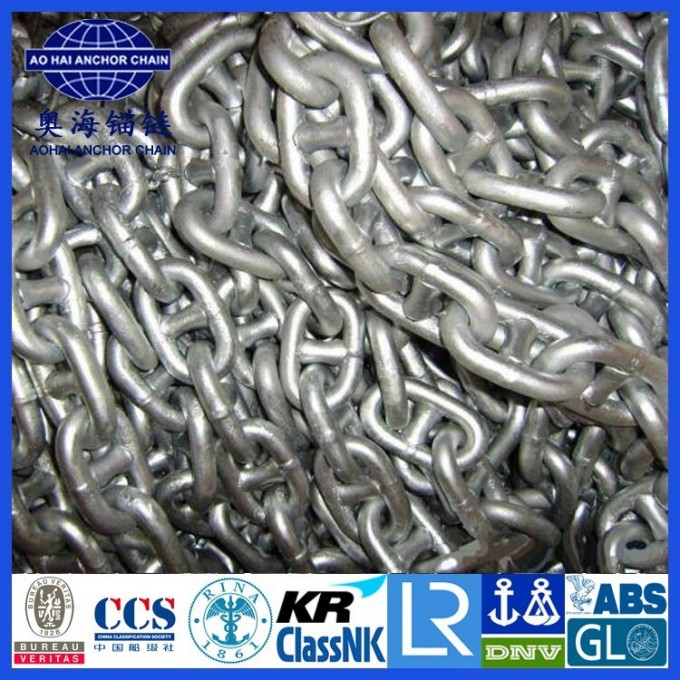

Stud/Studless Anchor Chain accordance with ISO1704 GB549 GB/T20848

1.Product Data

Stud link Anchor Chain Load and Weight
Dia./mm	AM1		AM2		AM3		Weight (kg/m)
	B.L.(KN)	P.L.(KN)	B.L.(KN)	P.L.(KN)	B.L.(KN)	P.L.(KN)
11	52	36	72	52	102	72	2.65
12.5	66	46	92	66	132	92	3.42
14	82	58	116	82	165	116	4.29
16	107	76	150	107	216	150	5.61
17.5	127	89	179	127	256	179	6.71
19	150	105	211	150	301	211	7.91
20.5	175	123	244	175	349	244	9.2
22	200	140	280	200	401	280	10.6
24	237	167	332	237	476	332	12.61
26	278	194	389	278	556	389	14.8
28	321	225	449	321	642	449	17.17
30	368	257	514	368	735	514	19.71
32	417	291	583	417	833	583	22.43
34	468	328	655	468	937	655	25.32
36	523	366	732	523	1050	732	28.38
38	581	406	812	581	1160	812	31.62
40	640	448	895	640	1280	895	35.04
42	703	492	981	703	1400	981	38.63
44	769	538	1080	769	1540	1080	42.4
46	837	585	1170	837	1680	1170	46.34
48	908	635	1270	908	1810	1270	50.46
50	981	686	1370	981	1960	1370	54.75
52	1060	739	1480	1060	2110	1480	59.22
54	1140	794	1590	1140	2270	1590	63.86
56	1220	851	1710	1220	2430	1710	68.68
58	1290	909	1810	1290	2600	1810	73.67
60	1380	969	1940	1380	2770	1940	78.84
62	1470	1030	2060	1470	2940	2060	84.18
64	1560	1100	2190	1560	3130	2190	89.7
66	1660	1160	2310	1660	3300	2310	95.4
68	1750	1230	2450	1750	3500	2450	101.3
70	1840	1290	2580	1840	3690	2580	107.3
73	1990	1390	2790	1990	3990	2790	116.71
76	2150	1500	3010	2150	4300	3010	126.5
78	2260	1580	3160	2260	4500	3160	133.2
81	2410	1690	3380	2410	4820	3380	143.69
84	2580	1800	3610	2580	5160	3610	154.53
87	2750	1920	3850	2750	5500	3850	165.76
90	2920	2050	4090	2920	5840	4090	177.39
92	3040	2130	4260	3040	6080	4260	185.36
95	3230	2260	4510	3230	6440	4510	197.56
97	3340	2340	4680	3340	6690	4680	206.06
100	3530	2470	4940	3530	7060	4940	219
102	3660	2560	5120	3660	7320	5120	227.85
105	3850	2700	5390	3850	7700	5390	241.45
107	3980	2790	5570	3980	7960	5570	250.73
111	4250	2970	5940	4250	8480	5940	269.83
114	4440	3110	6230	4440	8890	6230	284.61
117	4650	3260	6510	4650	9300	6510	299.79
120	4850	3400	6810	4850	9720	6810	315.86
122	5000	3500	7000	5000	9990	7000	325.96
124	5140	3600	7200	5140	10280	7200	336.73
127	5350	3750	7490	5350	10710	7490	353.23
130	5570	3900	7800	5570	11140	7800	370.11
132	5720	4000	8000	5720	11420	8000	381.59
137	6080	4260	8510	6080	12160	8510	411.04
142	6450	4520	9030	6450	12910	9030	441.59
147	6840	4790	9560	6840	13660	9560	473.59
152	7220	5050	10100	7220	14430	10100	505.98
157	7600	5320	10640	7600	15200	10640	539.81
162	7990	5590	11180	7990	15980	11180	574.74

2.Company Introduce

Aohai Anchor Chain Co., Ltd. specializes in the production of marine anchor chains and offshore mooring chains. The company constantly invest 998 million to build astate of the art factory.The first phase of development includes an area of 180,000 m2, with about 500 staff, including engineers, project technicians and administration personnel. We are able to guarantee the highest quality for design, production and quality control, by employing experienced senior engineers.The main production equipments such as No.5, No.6, No.7, No.8, No.9 and No. 11 chain production lines, vertical Q.T. furnace and various cutting and tensile testing machines are of the first class. We have also invested greatly in our CAD and network technology and our PC management system enables us to provide logical resource technology, strict quality control and the highest product levels.Aohai adopts advanced flash butt welding and the production is in accordance with ISO1704, GB549, GB/T20848 and the standards of the leading classification societies worldwide. The main products are marine anchor chains and mooring chains with diameter from 22-166 mm. Our annual production capacity is currently around 100,000 tons and expected to increase dramatically in the following even further investments.Aohai Anchor Chain adopts advanced flash butt weldding and the production is in accordance withISO1704, GB549, GB/T20848and the standards of the leading classification societies worldwide(CCS, ABS, BV, NK, KR, LR, DNV, GL, RINA, RMRS).
Our main products are marine anchor chains and mooring chains with diameter from22-162mm.
