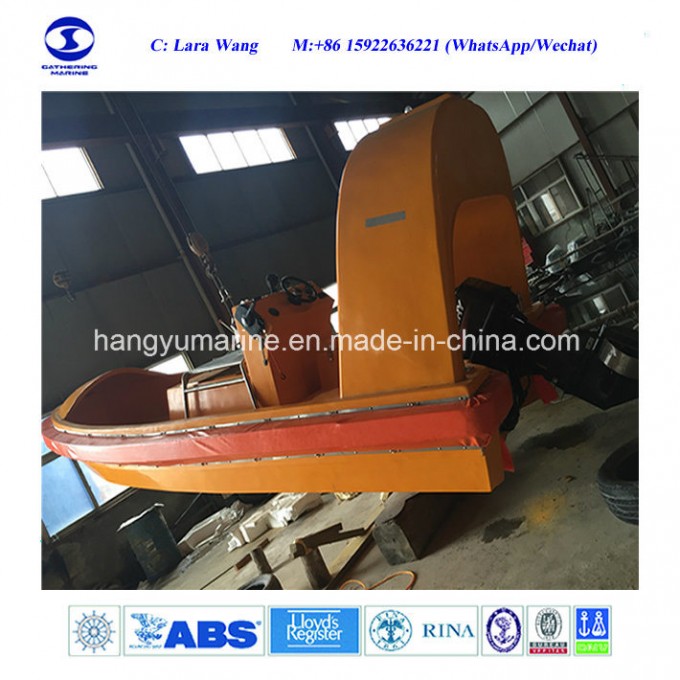

6 Man High Speed Fast Rescue Boat / Frb Survival Craft

6 man Solas High Speed Fast Rescue Boat FRB Survival Craft


Design Basis:
Comply with the requirement and rules of SOLAS and amendment 1996,LSA Code,MSC.218(82),MSC.272(85),MSC.320(89)&MSC.81(70),MSC.226(82),MSC274(85),MS321(89)
It can driven by Outboard Engine and Inboard Engine.
Boat Body material: Fire-Retardant type FRP
It can self-righting by itself when capsized
Rubber Fender is fitted around the boat
The deck can self-motion drainage
Certification: CCS/BV/ABS/EC
Capacity:6~15Persons
Length : 4.5~6.5m




6m Fast Rescue Boat Main Parameters

Length of Hull	6.00m
Breadth of Hull	2.30m
Depth of Hull	0.87m
Occupants	82.5kg per person
Speed	When 3persons, speed ≥20 knots
Weight include fuel oil,equipment	1175kg
Light load with 3persons	1423kg

Engine and steering system
The rescue boat is powder by an outboard engine

MERCURY 60 (gasoline outboard engine

Power	60HP(44.1KW)
Revolution	5000-5500 RPM
Starting system	Electric start
Engine weight	99.5kg

Propeller

Diameter	300mm
Pitch	250mm

Fuel oil tank

Materail	SUS.stainless steel
Capacity	100L
No. of set	1 set

Other type of Fast Rescue Boat

Type	MainDimensions	Capacity	Speed	TotalWeight	Engine
GR45KR	4.05*1.86*0.86m	6P	≥20knots	1165kg	Mercury60hp
GR50R	5.05*1.86*0.86m	10P	≥20knots	1870kg	Mercury88hp
GR60KR	6.0*2.2*1.05m	15P	≥20knots	2418kg	Mercury60hp
GR60KR Doubleengine	6.0*2.2*1.05m	15P	≥25knots	2588kg	Mercury60HP*2
GRB60G Inboardengine	6.32*2.35*0.9m	12P	≥20knots	2720kg	Yanmar118/147/177
GR65KR	6.5*2.2*1.05m	15P	≥27knots	2646kg	Mercury160hp
GRB65Q Outboard/Inboardengine	6.8*2.45*0.9m	9P	≥20knots	2193/2493kg	Mercury/YANMAR
GRB78Q InboardEngine	7.88*2.9*0.78m	15P	≥32knots	3502kg	YANMAR177/232hp

Outboard Engine and Diesel Engine driven Fast Rescue Boat are available, welcome to contact us if any type of Rescue boat be interested, thanks
