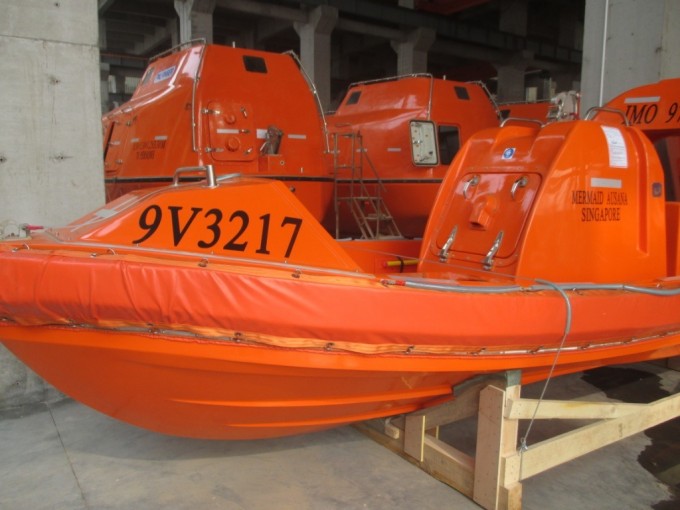

Iacs Approvals 4.0m 6 Men GRP Rescue Boat C/W Single Arm Davit

IACS Approvals 4.0M 6 Men GRP Rescue Boat C/W Single Arm Davit

The rescue boats are made of fiberglass reinforced plastics, between its inner hull and outer hull is filled with polyurethane foams to offer sufficient buoyancy. If damages occur to the boat body under water, the buoyant hull can still provide sufficient buoyancy to enable the boat to sail on the safety water surface.
The design of our rescue boat is totally in accordance with the the requiremnt of SOLAS, IMO, and different Classification Societies. Therefore, CE, CCS, ABS, BV, DNV, GL, LR, NKK, RINA, etc. Are available for our life/rescue boats.

1. Hull
The open type rescue boat to be constructed with single bottom and square shape of boat stern. The boat hull and inner shell shall be FRP laminate made of fire retardant polyester resin and roving cloth. The boat to be driven by outboard engine, out board engine model: Mercury 30 22.1 Kw power or other.

2. Rescue Boat Type
Inflatable rescue boat, RFP rescue boats, RFP fast rescue boat, RFP encloused rescue boat(partially enclosed and totally enclosed type)

3. Main dimensions
The rescue boat can be classified into 4.3m, 4.5m, 5m, 5.5m, 6.5m and above type rescue boat.

4. Engine and speed
Outboard engine: Mercury, Yamaha, 380J-3, etc.
Speed > 6 Knots


5. Number of persons: based on your boat type(at least 6)

6. Advantages: Stability, safety and big capacity.

7. Manufacturing term
based on the amendments to the international convention for the safety of safety of life at sea, 1974;
International life-saving appliance(LSA) code and MSC218, MSC272; MSC. 81(70) The resolution for maritime safety committee MSC226, MSC274

Type	Main Dimensions	Capacity	Speed	Total Weight	Engine
GRB40R Outboard engine	4.05*1.86*0.83m	6P	≥6knots	1115kg	Mercury 25hp
GR4.5S Single hook	4.5*1.86*0.85m	6P	≥6knots	1185kg	Mercury 25hp
GR4.5D Double hook	4.5*1.86*0.85m	6P	≥6knots	1205kg	Mercury 25hp
GR40KR	4.0*1.86*0.86m	8P	≥6knots	1245kg	Mercury 25-30hp
GR42KR	4.25*1.72*0.85m	6P	≥6knots	1005kg	Mercury 25hp
GR45DR	4.5*1.7*0.75m	8P	≥6knots	1565kg	Mercury 25hp
GR54KR	5.4*1.86*0.86m	15P	≥6knots	1975kg	Mercury 25-30hp
GRB55KR Inboard engine	5.5*2.06*0.9m	6P	≥8knots	2195kg	YANMAR/STEYR
