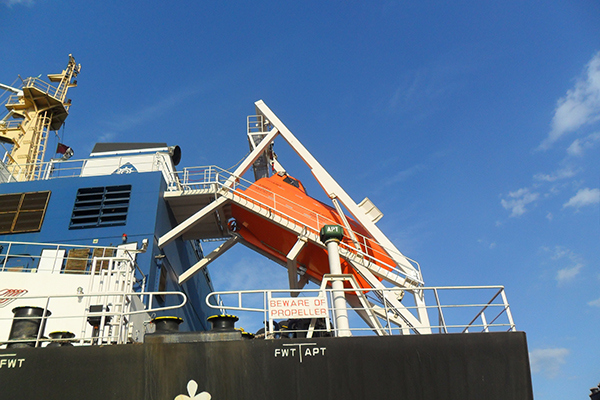

20 Man Free Fall Type Fiberglass Boats with Davit

Application of free fall life boat

Free Fall Lifeboat is a model aboard from the stern port designed and manufactured in accordance with the latest specification of SOLAS and international standards.
It can fall into the water through the slide way (on the ship or platform) and keep the passengers in the boat, ensure quick and safe escape.
The passenger can be on board from the life gate and the driver inside can release it and let it slides into the sea safely and freely.
Free-release system is specially designed and easy for operating and can provide global services.

Specification of free fall life boat
Capacity:16-90 Persons
Lifeboat Length:4.9-14.5m
Boat Body Material: Fire protected type FRP
It can self-righting by itself when capsized.
Certificates: CCS/BV/ABV/EC
Type: Tanker version & Cargo Version

F: Tanker Version--- This type lifeboat has strengthened configuration based on the totally enclosed lifeboat to bear the strong impact when falls to the water and can escape from the vessel and offshore platform quickly. It is especially suitable for the dangerous places such as oil drilling platforms.

C: Cargo Version--- This type lifeboat can fall into the water through the slide and keep the passenger in the boat or on the platform safe. This mode has release device inside, the passenger can be on board from the life gate and the driver inside can release it and let it slides into the sea safely.

FC: cargo version
FF: tanker version

Type	Size	Capacity	Height	Speed	Weight	Full Weight
GR49FC/FF	4.9*2.18*0.7m	16P	3.0m	≥6	2580/2870kg	3900/4190kg
GRB52FC/FF	5.2*2.35*3.07m	16-20P	3.07m	≥6	2780/3120kg	4100/4440kg
GR59FC/FF	5.9*2.36*3.1m	26P	3.1m	≥6	2774/3120kg	4919/5265kg
GR60FC/FF	6.0*2.32*0.86m	20P	3.1m	≥6	3000/3300kg	4650/4950kg
GRB66FC/FF	6.6*2.75*3.1m	30P	3.1m	≥6	3520/3860kg	5995/6395kg
GR675FC/FF	6.75*2.75*0.76m	32P	3.1m	≥6	3530/3840kg	6170/6480kg
GRB75FC/FF	7.5*2.75*3.2m	36P	3.2m	≥6	4140/4480kg	7110/7480kg
GR85FC/FF	8.5*2.95*3.2m	50P	3.2m	≥6	4560/4900kg	8685/9025kg
GR109FC/FF	10.9*2.95*3.3m	67P	3.3m	≥6	6508/6919kg	12036/12446kg
GR145FC	14.5*3.25*3.4m	90P	3.4m	≥6	9135kg	16560kg
