Detailed Description

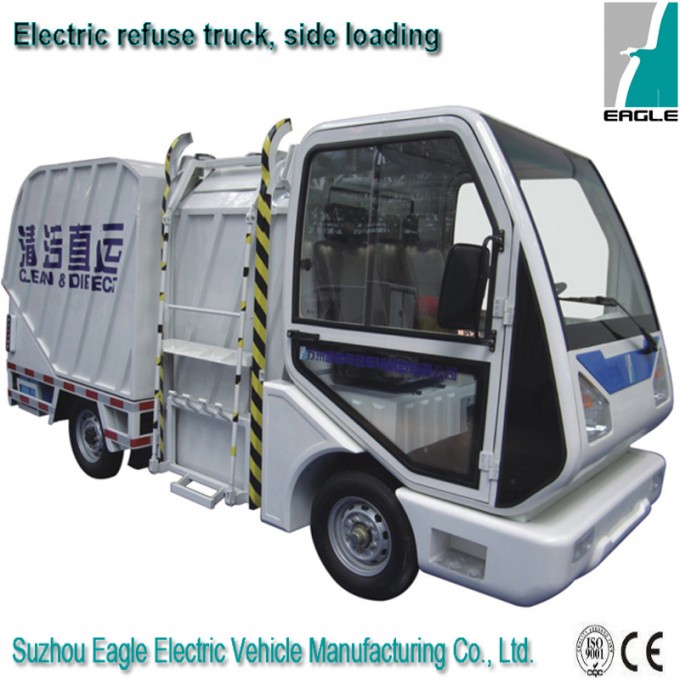

EG6042X is Suzhou Eagle new developped electric garbage truck (developped in 2011).It's built ba
sed Suzhou Eagle's new electric truck (EG6032H).They shares the same chassis and other main components.Due to its characteristics of no pullution, no noise and low use cost, this electric garbage truck can be widely used in closed area like community, hotel, resort, garden, park, airport, bus station, train station, etc.For side loading, collecting and transporting garbage or waste
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 6.3KW DC |
| Controller | Curtis brand, Series excited, imported |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at aspeed of 20km/h (km) | > 70 |
| Max.Speed(km/h) | 50 |
| Minimum turning radius (m) | 5.3 |
| Max.Climbing ability | 20% |
| Max.Loading weight | 1500kgs |
| Overall dimensions (mm) | 4550x1500X2220 |
| Cargo bed dimensions (mm) | 3000x1500X1400 |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | FRP body |
| Roof | FRP body |
| Cabin | Aluminum frame +glass door |
| Windshield | Laminated glass |
| Large Seats: | With backrest and headrest, sliding |
| Floor | Anti-sliding ruber floor mat |
| Side rear view mirror | |
| Electric system | |
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2front foglight, 2taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn. |
| Dashboard meter | Voltameter, ammeter, odometer, emergency switch;Combined switch, meter indicator |
| Audio System | Radio and MP3 adaptor, with 2speakers |
| Wiper | 12V, 50W, single arm |
| Charger | Input 110V-240V~50Hz-60Hz, output 72V, 25A |
| Steering and Suspension | |
| Steering system | Recirculating ball steering gear+ steering wheel |
| Brake system | Four wheel hydraulic drum brake+ parking brake |
| Brake assistant | Vaccum pump assistant |
| Transmission system | Clutch, gear box, transimmison shaft |
| Front Suspension system | Plate spring +hydraulic shock absorber |
| Rear Suspension system | Integrated rear end, rear plate spring +hydrualic shock absorber |
| Wheel &Tyre | 185R14C tubeless tire, 14*5.5 Jsteel rim |
| Color | |
| Body Color | 4 standard color:Pearl white/industrial yellow/pearl red/saffron yellow |
| Seat Color | White and Tan |
| Others | |
| Provides various options like:Heater, seatbelt, EPS, etc... |
Product Image
