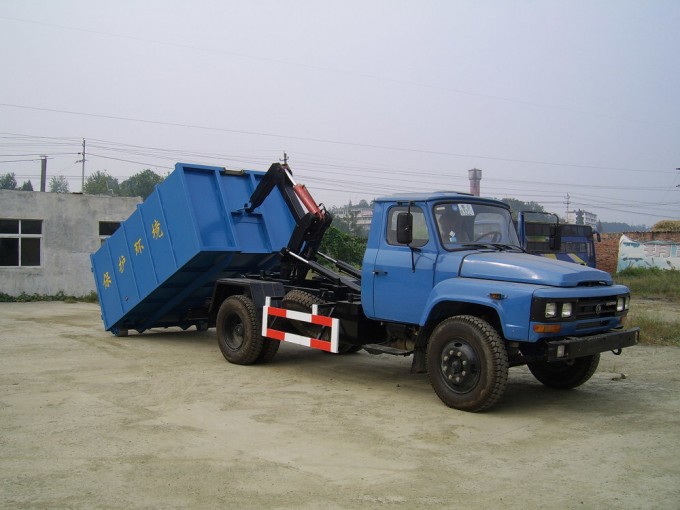

5m3 Roll-off Garbage Refuse Truck with Hydraulic Hook Lift System

5m3 Roll-off Garbage Refuse Truck with Hydraulic Hook Lift System

Hook loader truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, garbage collection truck , hook lifter truck etc. )is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.

Loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.

Technical Date

General	OverallDimension	6100*2200*2400mm
	GVW/KerbWeight	10000kgs/4600kgs
Cab	Cabcapacity	3personsallowed
	AirConditioner	Airconditionerisoptional
Engine	FuelType	Diesel,Gasoline,NaturalGas
	Power	190HP(139KW)
	Displacement	5193ml
	EmissionStandard	Euro 3
Chassis	Drivetype	4*2Lefthanddriveorrighthanddrive
	Transmission	6speedforward,1reverse
	MaxSpeed	90km/h
	NO.OFAxle	2
	Paint	metallicpaint
Superstructure	Wasteboxcapacity	5Ton(6CBM)
	DustbinMaterial	Anti-corrosivesteel
	HydraulicSystem	Chinesetopbrandmulti-WayValve,Cylinders
	ControlMethod	Manualcontrol,Remotecontrolasoptional
	Self-discharginginclineAngle	50°
	LiftingTime	≤60S
	Unloadingtime	≤60S
	Thehookloaderconsistsofunderframe,linkageframe,Fixedarm,Telescopicarm,hookArm,Lockingsystem,Hydraulicsystem......
Optional	Allotherstandardaccessories:Toolkit,Englishmanual......

Chassic :

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
