Detailed Description
Production des
cription:

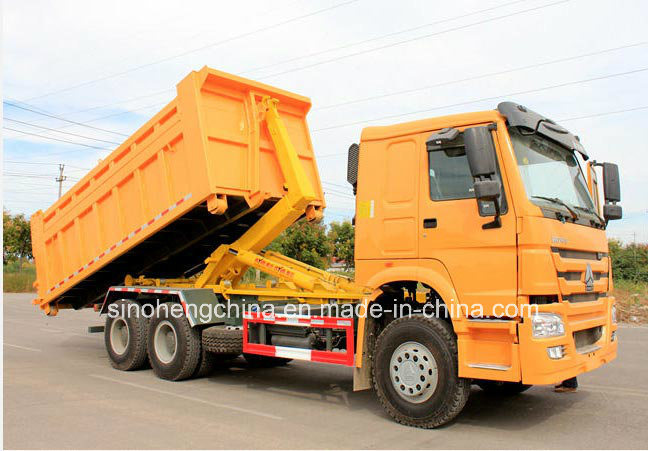

1. Sinotruk HOWO brand garbage truck 12m3, star product in our factory;
2.290HP with a dumper chassis, high strenght refuse compactor;
3. High compactor ratio and working efficiency.
Properties and Applications:
Compssed garbage truck is produced by using Germany technology, and has outstanding techniical advantage. The product has high system pssure, large compssion force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic degrees, quick loading speed, covenient, safe and reliable operation, and hasn't seco
ndary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compssed garbage truck uses compartment and truck separation, is equipped with several compartment for one truck, and can be used as small garbage transfer station.
| Chassis Model | ZZ1257M4647C |
| Driving Type | Left Hand Driving (Right Hand Driving is optional) |
| Cabin | HW76 cab, with one sleeper andtwo seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine | SINOTRUK |
| Transmission | HW15710, 10F & 2R, with PTO |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9, 1x9000 KG,Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Tires | 315/80R22.5, tubeless tireswith one spare tire. |
| Fuel Tank | 400 L |
| Overall Dimension | 9500*2550*3400 mm |
Product Image
