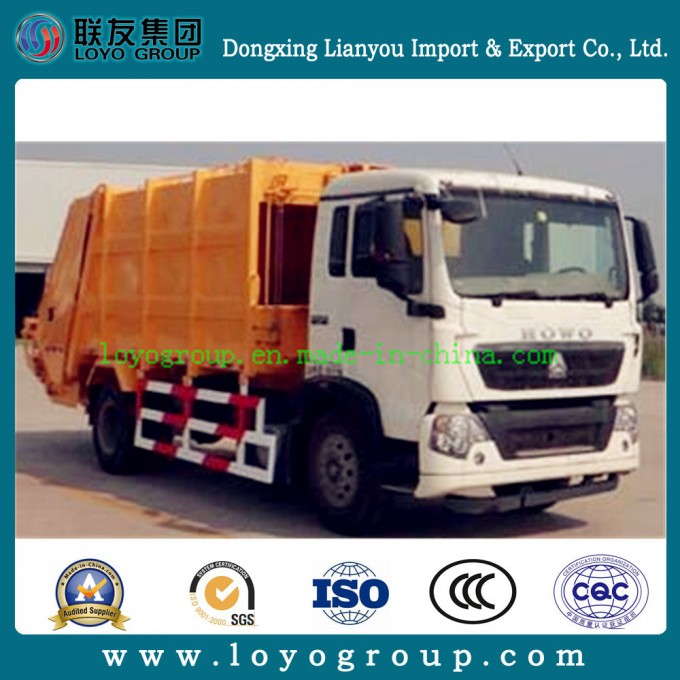

Sinotruk HOWO Rear Loading Garbage Hydraulic Trucks

HOWO
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by Sinotruk in line with it is a new generation high end, advanced and matured heavy duty truck.

Compssed Garbage Truck

It is the special dump truck equipped with hydraulic lifting mechanism and tail packer to compact the garbage, load, transfer and dump the garbage automatically.

SINOTRUK HOWO 4*2 Compssed Garbage Truck
				Driving Type 4x2
Chassis Model				ZZ1167M4611
Engine	Model			WD615.47
	Horsepower			266
	Type			6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Displacement			9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard,Rigid fan
Cab	HW70 HOWO long cab, with two seats, one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW13710CLtransmission ,12 forward and 2 reverse
Front Axle	SINOTRUK HF7 Front Axle,HOWO 9-ton front axles of equipped with drum brakes.
Steering	German ZF8098Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle;can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice forcustomers.
Brake System	Service brake:dual circuit compssed air brake
	Parking brake (emergency brake):spring energy,compssed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres: 12.00R20radial tyre with 1 Spare tire
Electrics	Operating voltage:24V,negative grounded
	Starter:24V,7.5 Kw
	Alternator:3-phase,28V,1500 W
	Batteries:2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light
Carriage ( dump body )	Overall length x width x height7350x2350x2800 (mm)
Weight (kg)	Kerb weight13000
	Gross vehicle weight25000
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.
The manufacturer reserves the right of technical alteration /change for better improvement without

Our Company
The LOYO Group originated from Dongxing Lianyou import & Export Co,.Ltd. which was founded in 2008. Its headquarter locates in Dongxing City ,Guangxi China, which is the leading-edge of China-ASEAN border and the only city connecting with ASEAN area both by land and water. Our company is an authorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK) , having the autonomy right of import and export businesses . Currently we have established an excellent and professional sales team and after-sales service team.

The LOYO Group's main business includes dump truck manufacturing & modification , sales and service of all series SINOTRUK(CNHTC) product including dump truck , off-road mining truck, tractor, cargo truck, concrete mixer truck, water tanker ,oil tanker and other special truck and parts. Concerning the mechanical power aspect, we have covered horsepower level from 90Hp to 540Hp, which can meet customers' different needs. Our target is to become a world renowned supplier and providing customers with cleaner, more energy-saving, safe, more reliable and comforter transportation vehicles.

OUR ADVANTAGE:
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan10years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan50countriesandregions

AFTER SERVICE:
LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.
