Detailed Description

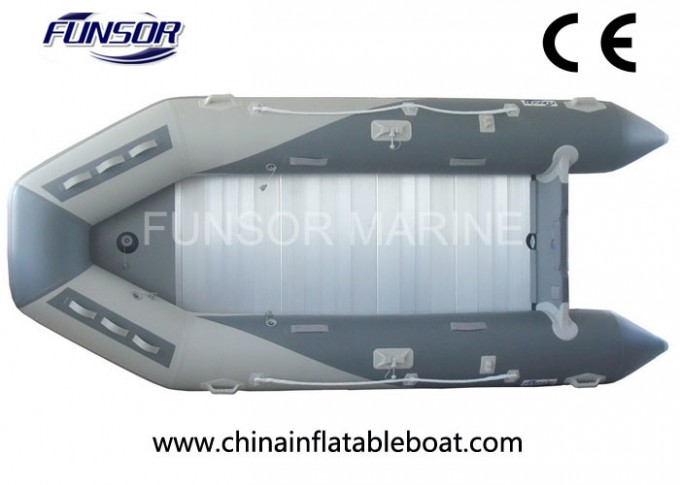

Hand Made Inflatable Dinghy with YAMAHA motor PVC tube Aluminum floor for rescue 2.3m-4.8m
8 models with length from 2.3m to 4.8m for outboards up to 22kw/30hp and offered with 5 types of flooring: Plywood, Aluminum, Air mat, VIB and Slatted.This models are specially designed for professio
nal use as work boats or rescue boats with a heavy load capacity, specious deck ,V-shape bottom and A-design boats front.
Standard Equipment
1. Two-two pieces aluminum oars 2.Marine grade plywood bench seat (3.0m below with one seat, 3.0m above with two seats) 3. Foot pump 4.Repairing kits 5.Carrying bag
Optio
nal Equipment
1. Bimini top 2.Boat cover 3.Bow stowage bag 4.Under seat bag 5.Electric air pump 6.Folding anchor
Optio
nal Floor
1. Plywood floor 2.Aluminum floor 3.Air mat floor 4.Slatted floor 5.VIB
Specifications of M Series
FWS-M Series technical specification and performance
| MODEL | OVERALL | OVERALL | NO.OF | NET | MAXH.P. | MAXLOAD | MAX | PACKAGE |
| LENGTH | WIDTH | WEIGTH | (KG/lbs) | PERSON | SIZE |
| (CM/inch | (CM) | (KG/lbs | (CM) |
| FWS-M230 | 230/7'6" | 135/4'6" | 3+1 | 38/84 | 4 | 350/772 | 2 | 110*60*38 |
| FWS-M270 | 270/8'10" | 151/4'11 | 3+1 | 48/106 | 10 | 484/1067 | 3.5 | 120*60*42 |
| FWS-M290 | 290/9'6" | 151/4'11" | 3+1 | 52/115 | 10 | 510/1124 | 4 | 110*75*40 |
| FWS-M320 | 320/10'6" | 151/5'11" | 3+1 | 55/121 | 15 | 566/1248 | 4.5 | 120*60*40 |
| FWS-M360 | 320/11'9" | 170/5'7" | 3+1 | 76/168 | 20 | 689/1519 | 5.5 | 125*65*42 |
| FWS-M380 | 380/12'6" | 170/5'7" | 3+1 | 78/172 | 20 | 727/1603 | 6 | 125*68*45 |
| FWS-M430 | 430/14'1" | 190/6'3" | 3+1 | 86/194 | 30 | 1087/2396 | 7 | 130*85*41 |
| FWS-M480 | 480/15'9" | 190/6'3" | 3+1 | 96/211 | 40 | 1100/2425 | 7+1 | 145*85*42 |
Product Image
