Detailed Description

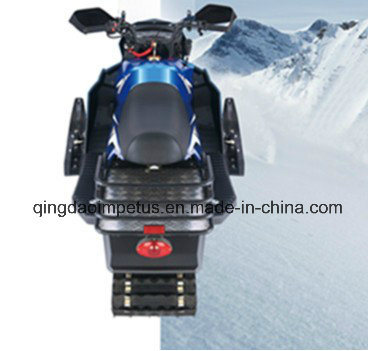

200CC Snowmobile
1). Powered by 10.5HP gasoline engine
2). Electric Starting
3). Brake: Disc brake
4). Max. Speed: 50km/h
5). Max. Loading: 150kg
6). Can be disassembled to easily put into a car
7). EPA and EEC certificate standards for North America and Europe.
| SPECIFICATION |
| Model | SM200 |
| Engine type | GY6 170cc |
| Max power/RPM(kw/r/min) | 7.6/7000 |
| Max torque/RPM(N.m/r/min) | 10.2/5000 |
| Fuel consumption | 5.5L/100km |
| Tank capacity | 4.5L |
| Culth | Automatic |
| Supply sustem | Carburetor |
| Brake control(rear) | Hand control |
| Way of drive | Chain and rubber track drive |
| Start type | Electrical and hand start |
| Max speed | 45-50km/h |
| Overall size (L*H*W) | 2400*980*1140mm |
| Dry weight | 170kg |
| Load,Max | 170kg |
| Brake system (rear) | Disc brake |
| Climb ability | 30°-35° |
| Caterpillar band overall length | 2400mm |
| Caterpillar band width | 310mm |
| Press snow deepth | 5-8cm |
| Press snow length | 880mm |
| Skid L*W | 920×135mm |
| 20GP/ 40HQ capacity | 16/ 54 units |
