Detailed Description
Properties and Applications:
Compssed garbage truck is produced by using Germany technology, and has outstanding techniical advantage. The product has high system pssure, large compssion force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic degrees, quick loading speed, covenient, safe and reliable operation, and hasn't seco
ndary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compssed garbage truck uses compartment and truck separation, is equipped with several compartment for one truck, and can be used as small garbage transfer station.
| Model | JHL5250ZYS |
| Chassis model | ZZ3257M3247C |
| Driving form | 6x4 |
| Total mass(kg) | 25000 |
| Curb weight(kg) | 14540 |
| Engine | WD615.87(290HP), Euro II emission standard
Engine type: Diesel 4stroke direct injection engine,
6cylinder inline with water cooling, turbo-charging & inter cooling |
| Cab | HW76(one bed with A/C) |
| Transmission | HW15710(10 Forward, 2 Revise) |
| Front axle | HF7 (7000kg) |
| Driving axle | HC16 (16000kg x 2) |
| Steering system | ZF8098 |
| Tire | 12.00R20 (11pcs, including one spare tire) |
| Wheelbase(mm) | 3250+1350 |
| Front/rear Overhang (mm) | 1500 / 2250 |
| Approach/departure angle(°) | 19 / 14 |
| Maximum speed(km/h) | 75 |
| Number of spring leaf | 10/12 |

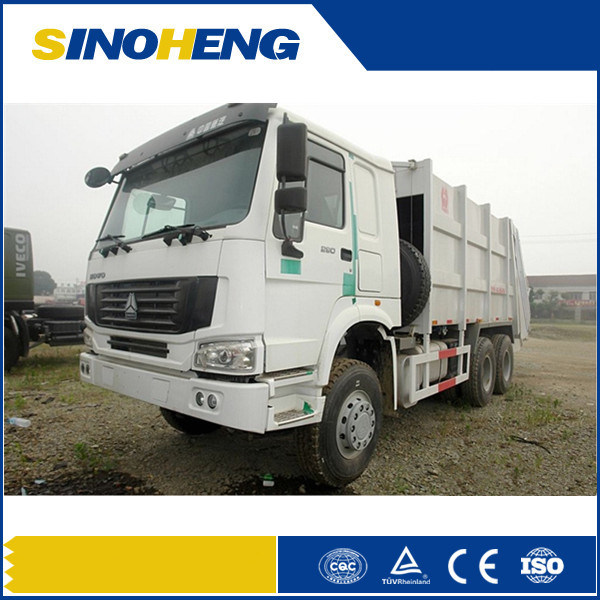

Product Image
