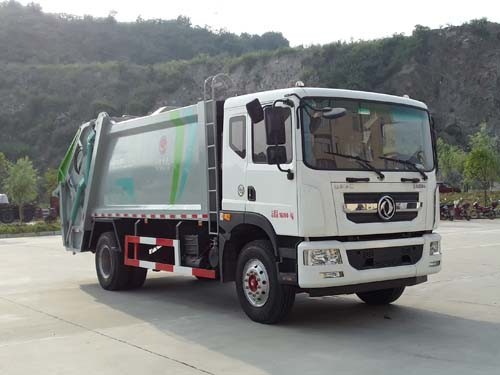

Dongfeng Compact Garbage Truck

Our company provide all kinds of special truck
Complete vehicle technical parameters:
Product Name :Compact Garbage TruckModel YZZ5160ZYSE
Total mass (Kg) 16000
Rated load capacity (Kg) : 6045,5655
Dimensions (mm) : 8380,8580,8650×2500×3250
Curb weight (Kg):9760,10150
Number of riders in the cab (person):3
Approach angle/departure angle (°): 19/10
Front suspension/rear suspension (mm) : 1230/2650,1230/2450
Axial load (Kg) : 5600/10400Top speed (Km/h):90
Remarks 1. The vehicle is used for garbage collection and transportation. The main special equipment is the truck body and compssion device. Optional square or curved carriage; optional rear cover, optional rear loading mechanism.
2. When using 4500mm wheelbase, the relationship between long/rearward/rearward is (mm): 8380/2650/0, 8580/2650/200, 8650/2650/270; when using 4700mm wheelbase, the length is long/ The relationship between the rear suspension/rear extension is (mm): 8380/2450/0, 8580/2450/200, 8650/2450/270.
3. The side protection adopts cold-formed steel/Q235, bolted; the back protection is replaced by a special device. , 450mm above ground level. 3. Install a tachograph with satellite positioning. ABS system controller model/manufacturer: J ABS/Jiaozuo Brake Control Technology Co., Ltd. The engine/fuel consumption value correspondence (L/100km) is used: YC4EG170-50/26, YC4EG185-50/26.3, ISB210 50/26.5, ISB180 50/26.3, ISD160 50/26.3.
[chassis technical parameters]
Chassis Model : EQ1161LJ9BDEChassis Name : Truck Chassis
Trade name: Dongfeng Brand Production Company : Dongfeng Motor Co., Ltd.
Number of axles :2 Number of tires : 6
Wheelbase (mm) : 3950, 4500, 4700, 5200, 5600
Tire Size : 9.00R20,10.00R20
Number of leaf springs : 8/10+7 Front track (mm) : 1858,1949,1923,1891
Fuel Type: Diesel Rear Track (mm) : 1806,1865
Emissions standard : Euro V
Engine Type Engine Manufacturer Displacement (ml) Power (Kw)
YC4EG170-50Guangxi Yuchai Machinery Co., Ltd. 4700 125
YC4EG185-50Guangxi Yuchai Machinery Co., Ltd. 4730 136
ISB210 50Dongfeng Cummins Engine Co., Ltd. 5900 136
ISB180 50Dongfeng Cummins Engine Co., Ltd. 5900 132
