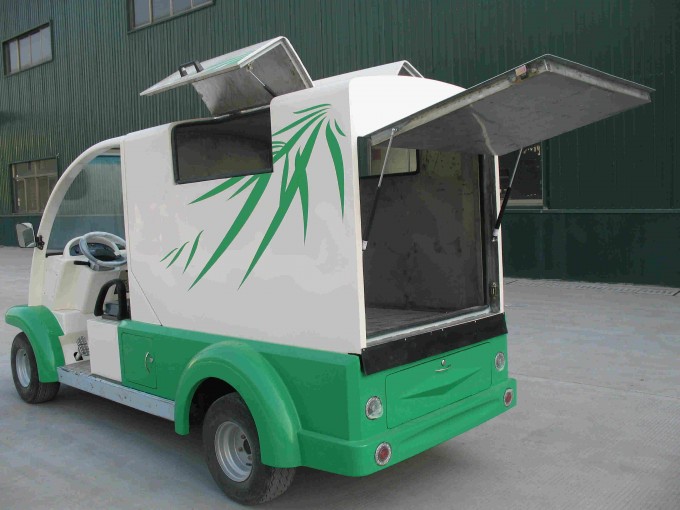

Electric Garbage Barrel Collection Truck

Trash truck

Description:
EG6020X, trash truck, small size, suitable for using in narrow areas, rear garbage box with hydraulic lifting function,48V system
Key Components

Item	Description
Controller	Curtis controller, 275A, imported from USA directly
Motor	Rated power 4KW(5.4HP), Chinese brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	Up to 70
Max.Speed (km/h)	Up to 30
Min.Turning radius (m)	4
Max.Climbing ability(loaded)	Up to 15%
Max.Movement after brake at speed of 20km/h	≤4m
Max.Loading weight (kgs)	500
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	3750x1400x1810 (LxWxH)
Rear garbage box dimensions (mm)	1720x1090x1170
Min.Ground clearance (mm)	140
Wheelbase (mm)	2450
Front wheel tread (mm)	1160
Rear wheel tread (mm)	1150

Body and frame

Item	Description
frame &Chassis	Welded steel framework with sand blasting and painting
Body	FRP and Plastic
Roof	FRP with steel frame, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Steel
Seat	Reborn sponge with artificial leather, high back, with formed armrest
Rear garbage box	Steel material, with hydraulic lifting function, side cover and rear door with air-spring
Floor	Bamboo floor with Skidproof leather
Dashboard	FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc..
Side rear view mirror	2pcs

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	Including switch for headlight, turning light, wiper and horn
DC/DC converter	48V/12V
Digital Meter	With Current meter, voltometer, speedometer, odometer and various indicators
Audio system	Radio with MP3 receiver and 2waterproof speaker

Steering &suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, With automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, steel differential case, 12.49:1 gear ratio
Wheel &Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap

Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Inner rear view mirror	6	CD player
2	Seatbelt (2-point or 3-point)	7	Wired mircophone
3	Battery watering pipe	8	Solar panel (built in)
4	Water pump (handle)	9	10x6 aluminum rim
5	Rain cover

Packing &Shipping
Vehicles will be packed in steel crate

Container loading qty	Assembled	Refer Picture
20'ft GP	1
40'ft GP	3
40'HQ	3

Warranty


All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
