Detailed Description
Electric vehicle product des
cription
1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage.
Electric system | controller | 1266/275A | | battery | trojan battery 8V 6 units | | motor | KDS48V/3.7KW motor | | charger | Computer Intelligent input 220V/110V ourput 48V 20A | | Charging time | Less than 12 hours discharging rate 80% |
Body configuration | Glass | PC glass | Sun Roof | ABS Vacuum forming
| | seat | leather | Floor | Autiskid rubber floor | | Rear mirror | Handoperated both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering | | DC/Light/Signal | 48V/12V-300W Front light turning light rear light horn Buzzer | | Body | PP Vacuum forming | | Dash Board | PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse | | Braking system | Rear drum brake+compound pedal brake | | Front axle and suspension | Independent suspension helical spring +cylinder hydraulic shock absorption | | Rear axle and suspension | Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption | | Tire diameter | 452mm |
Parameter
| Length*width*height | 3600*1200*1900mm | | Loading passenger | 2 | | Max speed km/h | 22km/h | Mileage
/km | 70_90km flat road | | Max climbing ability | 25% | | Mini turning radium m | 5m | | Mini ground clearance | 110mm | | Wheel base | Front 930/back 1010mm | | Braking distance | 4.5m |
|

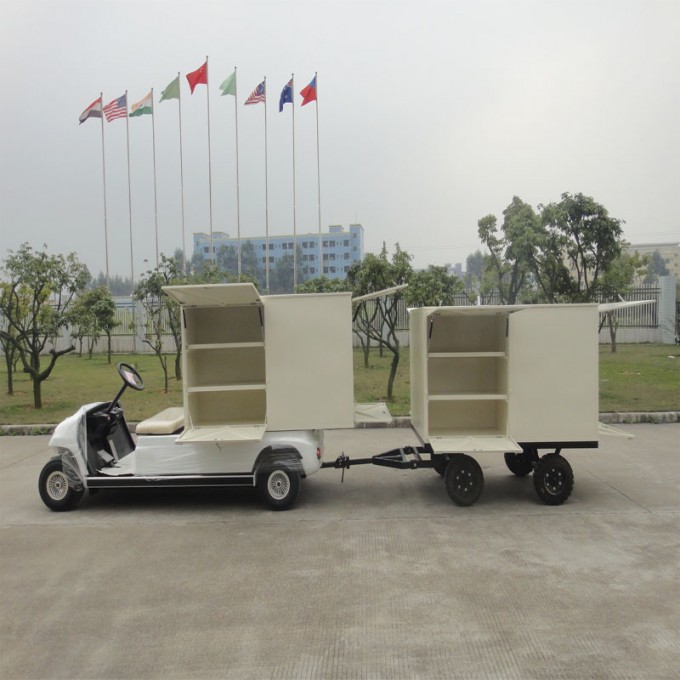

Product Image
