Detailed Description
Electric vehicle product des
cription
1. Motor: US ADC brand
2. Controller: CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage.
Electric system | controller | 1266/275A |
| battery | Trojan battery 8V 6 units |
| motor | KDS48V/3.7KW motor |
| charger | Computer Intelligent input 220V/110V ourput 48V 20A |
| Charging time | Less than 12 hours discharging rate 80% |
Body configuration | Glass | PC glass | Sun Roof | ABS Vacuum forming
|
| seat | leather | Floor | Autiskid rubber floor |
| Rear mirror | Handoperated, both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| DC/Light/Signal | 48V/12V-300W Front light turning light rear light horn Buzzer |
| Body | PP Vacuum forming |
| Dash Board | PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse |
| Braking system | Rear drum brake+compound pedal brake |
| Front axle and suspension | Independent suspension helical spring +cylinder hydraulic shock absorption |
| Rear axle and suspension | Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption |
| Tire diameter | 452mm |
Parameter
| Length*width*height | 3320*1200*1900mm |
| Loading passenger | 6 |
| Max speed km/h | 22km/h |
Mileage
/km | 80_ 90km flat road |
| Max climbing ability | 20% |
| Mini turning radium m | 3.9m |
| Mini ground clearance | 110mm |
| Wheel base | Front 930/back 1010mm |
| Braking distance | 4.4M |

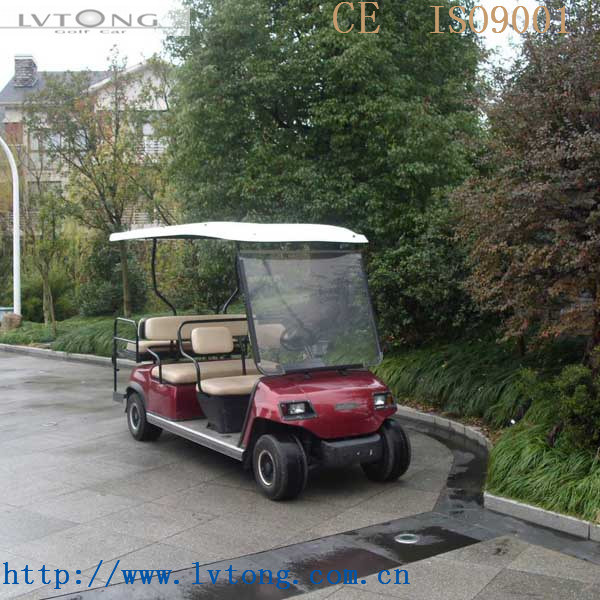

Product Image
