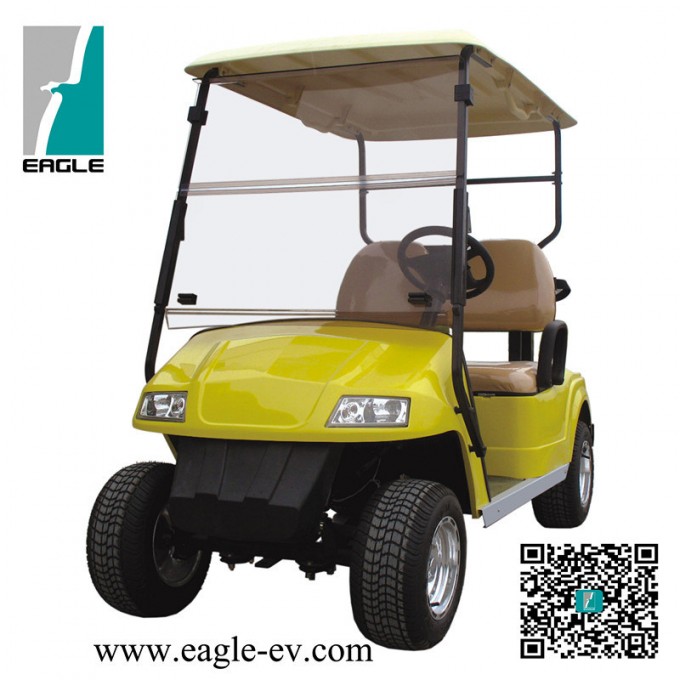

CE Approved Pure Electric 36V Golf Cart

System:Multiple can choose
High quality and fashion design
Low price and Hot sale
China factory supply
Model:EG2028K

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc...It has aworkshop area of 20, 000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Key Components
Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3KW, 3.8KW, 5KW,DC /AC
Controller	Curtis brand, Separately excited, imported
Performance
Passenger capacity	2
Range (loaded) (km)*	> 60--100 depends on battery setup
Max.Speed (KM)	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3.5
Max.Climbing ability	20%-25%
Max.Loading weight	150kgs
Overall dimensions (mm)	2350x1180X1750
Body and frame
frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body +PP plastic rear body
Roof	Injected plastic
Windshield	One-piece Organic glass
Large Seats:	Rebond seat +artificial leather, formed armrest, plastic seat bottom
Floor	Rubber
Dashboard in black plastic	Forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2front turn signals, 2taillights( each combined 1brakelight with 1turn signal), with DC-DC converter, horn.Reversing alarm
Charger	Input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring +cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel &Tyre	10x6 Alumimum wheel &205/50-10 4PR
