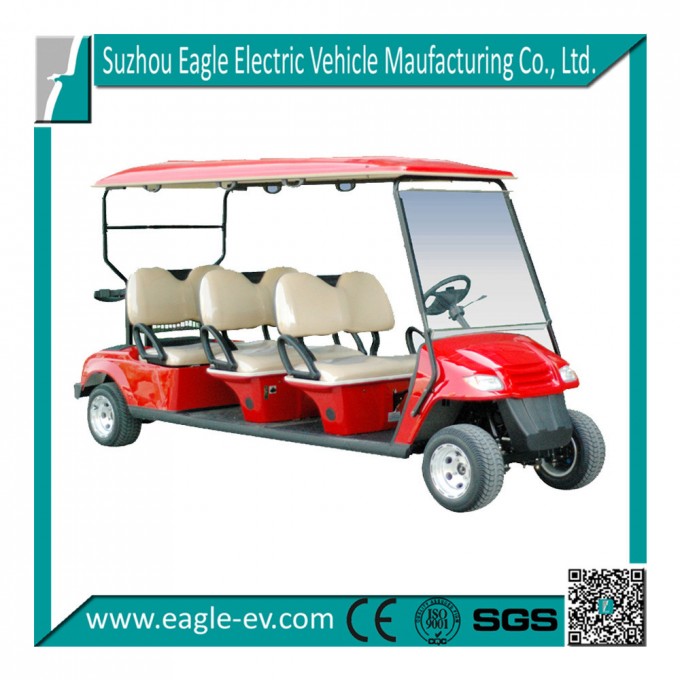

Electric Golf Cart, 6 Seats, 5kw AC Motor

Specifications Model EG2068K
Key Components
Power Source Pure Electric
Electric System Both AC and DC system are available
Battery Trojan battery
Motor ADC motor or Chinese Motor
Controller Curtis controller
Charger China origin, input 110V-240V~50Hz-60Hz,
Performance
Passenger capacity 6
Range (loaded) based on flat road at aspeed of 20km/h Up to 90km
Max.Speed Up to 40
Minimum turning radius (m) 6
Max.Climbing ability (loaded)Up to 20%
Max.Movement after brake at speed of 20km/h ≤4m
Max.Loading weight 480kgs
Dimensions
Overall dimensions (mm) 3860x1180x1890
Min.Ground clearance (mm) 120
Wheelbase (mm) 3200
Front wheel tread (mm) 875
Rear wheel tread (mm) 985
Body and frame
frame Welded steel framework with phosphate+electro-coating treatment
Body PP plastic front body +PP plastic rear body
Roof Injected plastic
Electric system
Lighting system and horn:Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm
Steering and Suspension
Steering system:Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system 4-wheel hydraulic brake +hand brake
Suspension system Front and rear plate spring +cylinder hydraulic shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle DD136 integrated domestic real axle, gear ratio:12.76
Wheel &Tyre Alumimum wheel &205/50-10 Tyre
Options
Hinged Windshield
Stainless steel package
Motor (available for 48V system)
2 point seat belt
Formed seat &backrest
Wood finish Package
Inner &Side rear view mirror
Solar Panel
Cooler
On-body charger
Right hand drive system
Enclosure
Body Color
Up to 6kinds of standard color for option
Loading
Both Assembly and Disassembly are available






Detailed description as below

Model	EG2029K	EG2029K01	EG2029K02	EG2029K03	EG2029K05	EG2029K07	EG2029K08	EG2029K09
System	36V/3KW Sepex	48V/3KW Sepex	48V/4KW Sepex	48V/4KW Sepex	48V/5.3KW Sepex	48V/3KW AC System	48V/5KW AC System	48V/5KW Sepex
Battery	6PCSxT105(185Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3KW ADC motor	3KW ADC motor	3.8KW Chinese motor	3.8KW Chinese motor	5.3KW Chinese Motor	3KW German Motor	5KW Chinese Motor	5KW ADC DV9 Motor
Controller	Curtis 1243 (300A@2minutes)	Curtis 1266 (275A@2minutes	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes	Zapi ACE0(280A@2minutes)	Zapi ACE2(400A@2minutes)	Curtis 1268 (400A@2minutes
Passenger capacity	2	2	2	2	2	2	2	2
Range (loaded) based on flat road at aspeed of 20km/h (km)*	>60	>60	>60	>80	>80	>100	>100	>80
Max.Speed @12.76:1 gear ratio	21	25	32	32	32	32	32	32
Max.Speed @10.26:1 gear ratio	25	40	40	40	--	--	--	--
Minimum turning radius (m)	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Max.Climbing ability (loaded)@ 12.76:1 gear ratio	25%	25%	25%	25%	25%	25%	25%	25%
Max.Climbing ability (loaded)@ 10.26:1 gear ratio	15%	20%	20%	20%	--	--	--	--
Max.Movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m
Max.Loading weight	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs
Net weight	470kgs	471kgs	473kgs	528kgs	528kgs	524kgs	537kgs	529kgs
Dimensions
Overall dimensions (mm)	2350x1180X1800
Min.Ground clearance (mm)	120
Wheelbase (mm)	1700
Front wheel tread (mm)	855
Rear wheel tread (mm)	975
