New Designed Electric Utility Cart Hot Sale Fashion Golf Cart

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

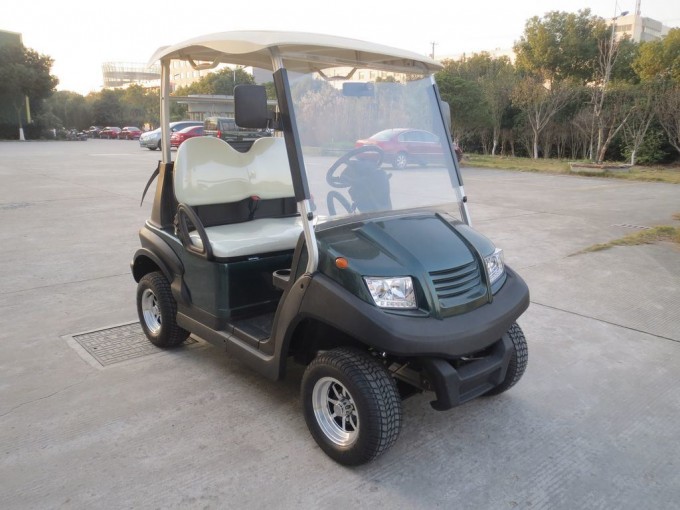

Two seater electric car


Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T875 or T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A, 36V,25A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	Up to 100
Max.Speed (km/h)	Up to 40
Min.Turning radius (m)	3
Max.Climbing ability(loaded)	Up to 25%
Max.Movement after brake at speed of 20km/h	≤4m
Max.Loading weight (kgs)	270
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	2410x1180x1800 (LxWxH)
Min.Ground clearance (mm)	120
Wheelbase (mm)	1680
Front wheel tread (mm)	1010
Rear wheel tread (mm)	1010

Body and frame

Item	Description
frame &Chassis	Aluminum alloy beam, bended
Body	PP plastic front and rear body cover, injected
Roof	Plastic
Windshield	One-piece organic glass (PMMA)
Roof supports	Aluminum with black powder coating
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic, black texture finish
Floor mat	Skidproof rubber
Centre sweater basket	Plastic, large volume
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2each side
Side trim	Plastic, black
Score card holder	On the steering wheel
