Detailed Description
High qualityElectric Golf Car From Suzhou Eagle
Detailed des
cription
| Model | EG2028K | EG2028K01 | EG2028K02 | EG2028K03 | EG2028K05 | EG2028K07 | EG2028K08 | EG2028K09 |
| System | 36V/3KW Sepex | 48V/3KW Sepex | 48V/4KW Sepex | 48V/4KW Sepex | 48V/5.3KW Sepex | 48V/3KW AC System | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | | | | | | | |
| Battery | 6PCSxT105(185Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3KW ADC motor | 3KW ADC motor | 3.8KW Chinese motor | 3.8KW Chinese motor | 5.3KW Chinese Motor | 3KW German Motor | 5KW Chinese Motor | 5KW ADC DV9 Motor |
| Controller | Curtis 1243 (300A@2minutes) | Curtis 1266 (275A@2minutes | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE0(280A@2minutes) | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes |
| Performance | | | | | | | |
| Passenger capacity | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Range (loaded) based on flat road at aspeed of 20km/h (km)* | >55 | >55 | >55 | >80 | >80 | >100 | >100 | >80 |
| Max.Speed @12.76:1 gear ratio | 21 | 25 | 32 | 32 | 32 | 32 | 32 | 32 |
| Max.Speed @10.26:1 gear ratio | 25 | 40 | 40 | 40 | -- | -- | -- | -- |
| Minimum turning radius (m) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Max.Climbing ability (loaded)@ 12.76:1 gear ratio | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Max.Climbing ability (loaded)@ 10.26:1 gear ratio | 15% | 20% | 20% | 20% | -- | -- | -- | -- |
| Max.Movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m |
| Max.Loading weight | 150kgs | 150kgs | 150kgs | 150kgs | 150kgs | 150kgs | 150kgs | 150kgs |
| Net weight | 470kgs | 471kgs | 473kgs | 528kgs | 528kgs | 524kgs | 526kgs | 528kgs |
| Dimensions |
| Overall dimensions (mm) | 2350x1180X1800 |
| Min.Ground clearance (mm) | 120 |
| Wheelbase (mm) | 1700 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |

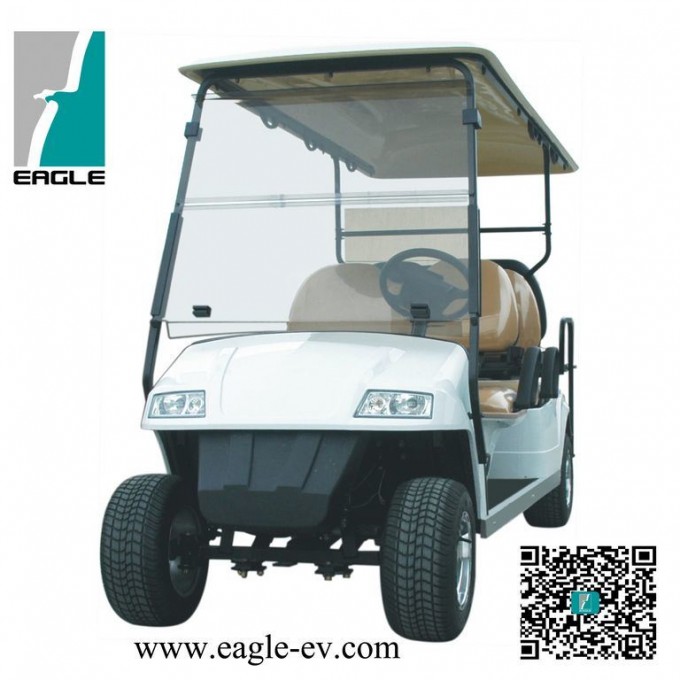

Product Image
