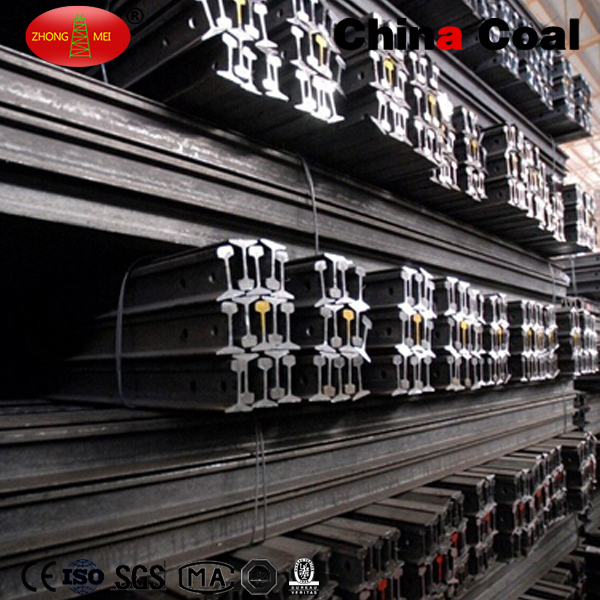

30kg Light Rail
Specification (KGS/M): 30.10Kg
Materials: Q235B/55Q
Length:6-12M
Light rail GB11264-89 | |||||||
SIZE | DIMENSION(mm) | UNIT WEIGHT (kg/m) | MATERIAL | LENGTH (m) | |||
HEADA (mm) | HEIGHT B (mm) | baseC (mm) | WEB D (mm) | ||||
9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235/55Q | 6-12 |
12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 |
15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235/55Q | 6-12 |
22KG | 50.3 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 |
30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235/55Q | 6-12 |
Parts
Bolt/ Nut/ spring washer/ Gasket
Fish Plates
