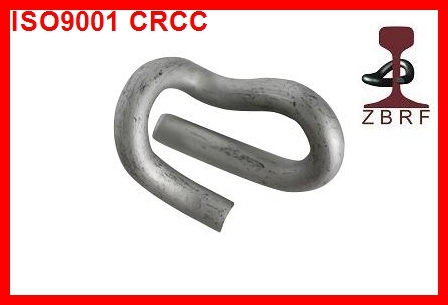

Pr415 Rail Clip for Railroad

PR415 rail clip for railroad
Material: Spring steel
1.60Si2MnA
2.60Si2CrA
3.55Si2Mn
4.38Si7

Clip Production Process
1. Raw material
2. Shearing
3. Heating to forging temperature (950-1000 degrees celsius)
4. Forming
5. Hardening
6. Tempering below 350 degrees celsius
7. Inspection
8. Packing

Standard
1. DIN17221
2. GB/T1222
3. BS970

Certification: ISO9001: 2008

Surface Treatment
1. Plain (oiled)
2. Color paint
3. Oxide Black
4. Galavazing
5. DHG

Application system: ( SKL2)
1. Iron tie plate
2. Rubber base plate
3. Skl elastic clip
4. Stud bolt, nut, washer
5. Screw spike

Similarity
1. E1609, E1809, E1817, E2007, E2009, E2055
2. PR series
3. SKL1, SKL2, SKL3, SKL12, SKL14
4. Deenik clip
5. Russia cli
6. Gauge lock clip
7. Nabla clip

Inspection machine
1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine
4. Automatic Impact Testing Machine
5. metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. metallographic Specimen Polishing Machine
9. metallographic Specimen Pointing Machine

Package:
1.25 kg double-layer woven bag with free fumigation wooden pallent
2.36bags/pallets
3.20pallets/20ft

Payment terms: 30% T/T deposit in advance, balance against Blcopy within 7 working days
Zhongbo Railway Fastening Company is a leading Chinese manufacturer of rail fastening and rail joint bar.Zhongbo, as a specialized rail fastener manufacturer, provides a complete line of productsas follows:
1.Rail clip,tension clamp,E rail clip,skl rail clip,W rail clip,O rail clip ,fast rail clip
2.Rail screw spike,rail sleeper screw,rail dog spike,coach screw,track spike
3.Rail bolt with nut,track bolt,anchor bolt,high strength bolt
4.Tunnel Construction Rings Connection Bolts
5.Fish plate,fish bolt,washer,nut
6.Plain washer,spring washer
7.Rail shoulder
8.Tie plate,base plate
9.Rail insulator,guide plate
10.Turnout,switch
11.Rail sleeper,steel sleeper,concrete sleeper,wood sleeper
12.Rail pad,rubber pad
We are dedicated on supplying more better quality rail fastenings to the world railroad, and contributing to availability of more safety and convenient transit.
