Rail Clamp Railway Fastener Railroad Construction

Railway Clamp

Part name	Type	Material	Finish	Remark

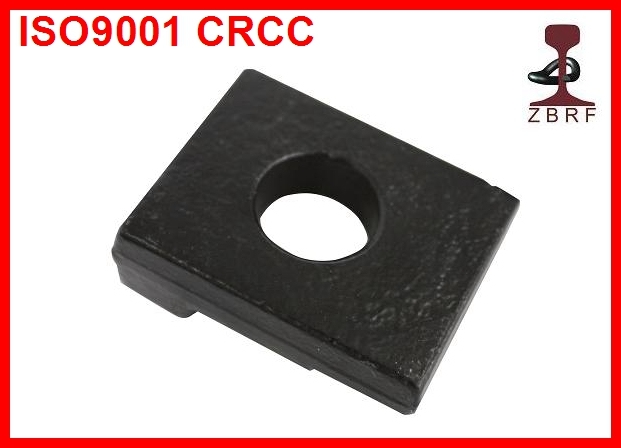

KPO clip	KPO3, KPO6, KPO9	Q235	Plain oiled	Standard: DIN5906
HS bolt	HS26, HS32	Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized	Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm Standard: UIC864-2
Hex nut	As ordered	Grade 5: 35# Grade 8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized	Standard: DIN985
Double coil spring washer	As ordered	65Mn	Plain oiled, black oxide, galvanized, hot dip galvanized	Standard: UIC864-3
screw spike	M24×150mm M24 ×160mm M24 ×180mm or other length as ordered	Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.	Standard: ISO898-1, UIC864-1 and NF F500-50
base plate	UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size	Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel	Plain oiled	Standard: UIC864-6

Zhongbo Railway Fastening Company is a leading Chinese manufacturer of rail fastening and rail joint bar.Zhongbo, as a specialized rail fastener manufacturer, provides a complete line of productsas follows:
1.Rail clip,tension clamp,E rail clip,skl rail clip,W rail clip,O rail clip ,fast rail clip
2.Rail screw spike,rail sleeper screw,rail dog spike,coach screw,track spike
3.Rail bolt with nut,track bolt,anchor bolt,high strength bolt
4.Tunnel Construction Rings Connection Bolts
5.Fish plate,fish bolt,washer,nut
6.Plain washer,spring washer
7.Rail shoulder
8.Tie plate,base plate
9.Rail insulator,guide plate
10.Turnout,switch
11.Rail sleeper,steel sleeper,concrete sleeper,wood sleeper
12.Rail pad,rubber pad
We are dedicated on supplying more better quality rail fastenings to the world railroad, and contributing to availability of more safety and convenient transit.
