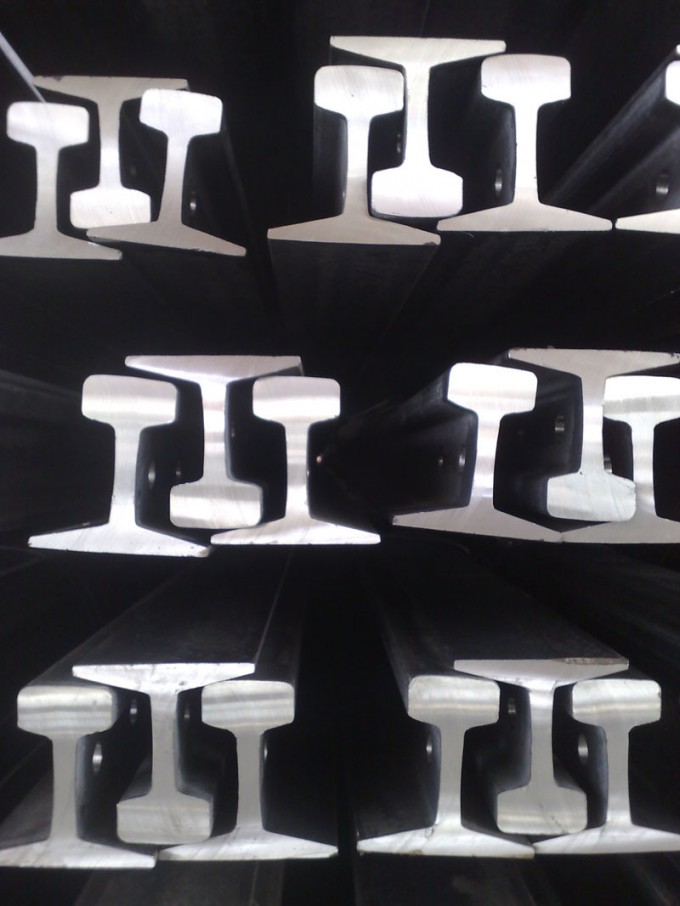

Heavy Steel Rail Uic 54 Railroad Steel Train Rail

Tee Rail & Light Rail

Tee rail sections are used in a wide variety of applications ranging from transit authority systems to Heavy haul railways.
Light rail sections (85 lb/yd and less) are used for mining, industrial, and crane applications.

Weight		Head width A		Heigh H		base width B		Web S
	lb/yd	kg/m	in.	mm	in.	mm	in.	mm	in.	mm
American sections
141RE	140.68	69.79	31/6	77.79	77/16	188.91	6	152.40	11/16	17.46
136RE	135.88	67.41	215/16	74.61	75/16	185.74	6	152.40	11/16	17.46
133RE	133.25	66.10	3	76.20	71/16	179.39	6	152.40	11/16	17.46
132RE	131.66	65.31	3	76.20	71/8	180.98	6	152.40	21/32	16.67
CB122	122.50	60.77	215/16	74.61	625/32	172.24	6	152.40	21/32	16.67
119RE	118.67	58.87	221/32	67.47	613/16	173.04	51/2	139.70	5/8	15.88
115RE	114.68	56.89	223/32	69.06	65/8	168.28	51/2	139.70	5/8	15.88
100RE	101.50	50.35	211/16	68.26	6	152.40	53/8	136.53	9/16	14.29
100ARA-B	100.56	49.88	221/32	67.47	541/64	143.27	59/64	130.57	9/16	14.29
100ARA-A	100.39	49.80	23/4	69.85	6	152.40	51/2	139.70	9/16	14.29
90ARA-A	90.00	44.64	29/16	65.09	55/8	142.88	51/8	130.18	9/16	14.29
ASCE85	85.00	42.17	29/16	65.09	53/16	131.76	53/16	131.76	9/16	14.29
ASCE80	80.00	39.68	21/2	63.50	5	127.00	5	127.00	35/64	13.89
ASCE60	60.00	29.76	23/8	60.32	41/4	107.95	41/4	107.95	31/64	12.30
ASCE40	40.00	19.84	17/8	47.62	31/2	88.90	31/2	88.90	25/64	9.92
ASCE30	30.00	14.88	111/16	42.86	31/8	79.37	31/8	79.37	21/64	8.33
ASCE25	25.00	12.40	11/2	38.10	23/4	69.85	23/4	69.85	19/64	7.54
ASCE20	20.00	9.92	111/32	34.10	25/8	66.70	25/8	66.70	1/4	6.40
European sections
UIC 60	121.64	60.34	2.93	74.30	6.77	172.00	5.91	150.00	0.65	16.50
UIC 54	110.41	54.77	2.84	72.20	6.26	159.00	5.51	140.00	0.63	16.00
S54	109.95	54.54	2.76	70.00	6.06	154.00	4.92	125.00	0.63	16.00
S49	99.65	49.43	2.76	70.00	5.87	149.00	4.92	125.00	0.55	14.00

We also manufacture according to drawings or samples from customers.
Additonally, we supply all kinds of railway materials like e clips, insulators, plastic or HDPE dowels, shoulders, joint bars, gauge studs, and other fastening products for raway.
Zhongbo Railway Fastening Company is a leading Chinese manufacturer of rail fastening and rail joint bar.

Zhongbo, as a specialized rail fastener manufacturer, provides a complete line of products, including rail fastening, anchor, rail joint, rail clip, rail screw, anchor bolt, rail clamp plate, rail fishplate, and fishplate bolt for connecting rail tracks.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.

Our products are mainly made through hot forging.

The threads of rail screw spikes are made by hot rolling with special threading machines.

We produce metric threads, BS, BSW, TR thread, or round threads.
