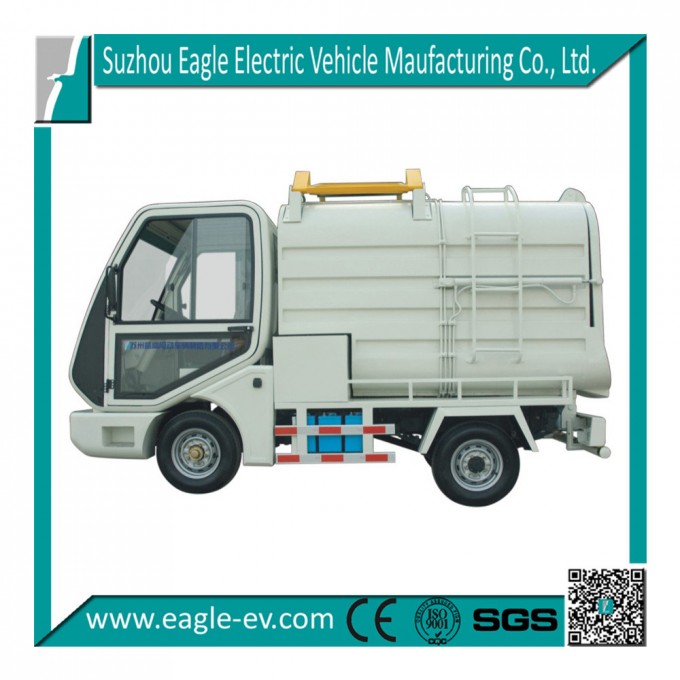

Electric Side Loading Garbage Truck, 1.5 Ton, Eg6042X, CE Certificate

Specifications	Model	EG6042X
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis or Zapi controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	2
	Range (loaded) based on flat road at aspeed of 20km/h (km)*	Up to 50
	Max.Speed	Up to 50
	Minimum turning radius (m)	5.3
	Max.Climbing ability (loaded)	Up to 20%
	Max.Movement after brake at speed of 20km/h	≤NA
	Max.Loading weight	1500kgs
Dimensions	Overall dimensions (mm)	4355x1500x2310
	Min.Ground clearance (mm)	150
	Wheelbase (mm)	2370
	Front wheel tread (mm)	1280
	Rear wheel tread (mm)	1220
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass
	Roof	Fibreglass
Electric system	Lighting system and horn	Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1reverse light, with DC-DC converter, horn.
Steering and Suspension	Steering system	Recirculating ball steering gear+ steering wheel
	Brake system	Four wheel hydraulic drum brake+ parking brake
	Suspension system	Plate spring +hydraulic shock absorber,rear plate spring +hydrualic shock absorber
	Driving mode	Clutch, gear box, transimmison shaft
	Rear axle	Integrated
	Wheel &Tyre	185R14C tubeless tire, 14*5.5 Jsteel rim
Options	2point seat belt
	Heater
	Electrical power steering system
Body Color	Up to 6kinds of standard color for option
Loading	only Assembly are available

Our Services
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.

Company Information

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline.Eagle invests alot to make production moulds, jigs and checking moulds to ensure pcise component parts.Eagle invests alot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc.To ensure component parts are produced and treated correctly.Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles.In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles.Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality.Eagle's sales persons can be reached in 24 hours x365 days.Eagle's sales persons are willing to answer any emails from their customers within 24 hours.Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
