Introduction OfRailway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail
1. Light rail: Size: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg material: 55q/Q235B standard: GB11264-89 standard, yb222-63 standardlength: 6-12m
2. Heavy rail: Size: 38kg, 43kg, 50kgmaterial: 50mn/u71mn standard: GB2585-2007length: 12.5-25m
3. Crane rail: Size: Qu70, qu80, qu100, qu120 material: U71mn standard: Yb/t5055-93 standardlength: 12m
Parameters OfRailway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail
Name
of
Commodity | Specificaton | Materials | StandardofProducts | Theory
Weight | Length
ofDimension
(m) | Packedin
bundlewithironwire
(pcs/bundle) |
| LightRail | 4kg/m | Q235 | Q/YYG001-2008 | 4kg/m | 6,8,9,10 | 75 |
| 8kg/m | Q235 | Q/YYG001-2008 | 8.42kg/m | 55 |
| 12kg/m | Q235 | GB11264-89 | 12.2kg/m | 36 |
| 15kg/m | Q235/55Q/50Q | GB11264-89 | 15.2kg/m | 28 |
| 18kg/m | Q235/55Q/50Q | YB222-63 | 18.02kg/m | 21 |
| 22kg/m | Q235/55Q/50Q | GB11264-89 | 22.3kg/m | 21 |
| 24kg/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kg/m | 21 |
| 30kg/m | Q235/55Q/50Q | GB11264-89 | 30.1kg/m | 15 |
| HEAVY RAIL GB2585-2007 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| 38KG | 68 | 134 | 114 | 13 | 38.733 | 50Mn/U71Mn | 12.5 |
| 43KG | 70 | 140 | 114 | 14.5 | 44.653 | 50Mn/U71Mn | 12.5 |
| 50KG | 70 | 152 | 132 | 15.5 | 51.514 | 50Mn/U71Mn | 12.5 |
| CRANE RAIL YB/T5055-93 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |

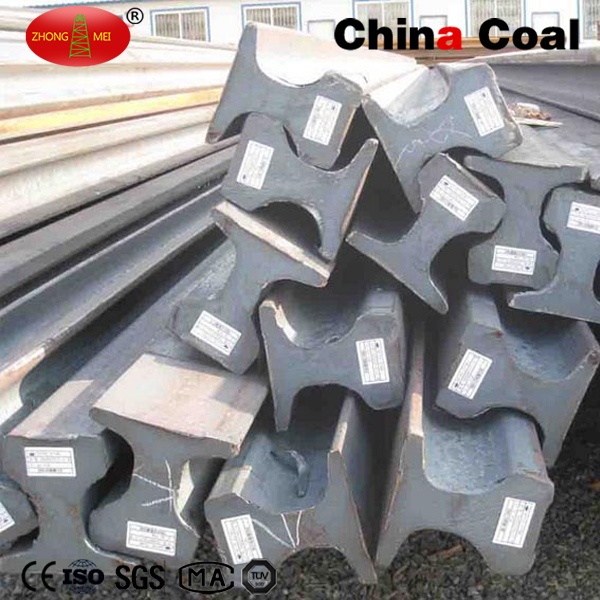

Photos OfRailway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail
