Introduction OfCoal Mining Q235 55q Light Steel Rail 30kg Light Rails
Here are the types of steel rails
Steel Rail includes light rails, heavy rails, crane rails and rail fittings.
1)Light rails: 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Steel grade: 55Q / Q235
Length: 6m~12m
Executive standard: refer to GB11264-89
…
2)Heavy rails: 38kg, 43kg, 50kg, 60kg
Steel grade: U71Mn / 50Mn and so on
Length: 12.5m
Executive standard: refer to GB2585-81/QB
Executive standard: refer to GB2585-81/QB
Parameter Of Factory Price Q235 Material 15kg/M Railroad Track Light Steel Rail
Name
of
Commodity | Specificaton | Materials | StandardofProducts | Theory
Weight | Length
ofDimension
(m) | Packedin
bundlewithironwire
(pcs/bundle) |
| LightRail | 4kg/m | Q235 | Q/YYG001-2008 | 4kg/m | 6,8,9,10 | 75 |
| 8kg/m | Q235 | Q/YYG001-2008 | 8.42kg/m | 55 |
| 12kg/m | Q235 | GB11264-89 | 12.2kg/m | 36 |
| 15kg/m | Q235/55Q/50Q | GB11264-89 | 15.2kg/m | 28 |
| 18kg/m | Q235/55Q/50Q | YB222-63 | 18.02kg/m | 21 |
| 22kg/m | Q235/55Q/50Q | GB11264-89 | 22.3kg/m | 21 |
| 24kg/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kg/m | 21 |
| 30kg/m | Q235/55Q/50Q | GB11264-89 | 30.1kg/m | 15 |
| HEAVY RAIL GB2585-2007 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| 38KG | 68 | 134 | 114 | 13 | 38.733 | 50Mn/U71Mn | 12.5 |
| 43KG | 70 | 140 | 114 | 14.5 | 44.653 | 50Mn/U71Mn | 12.5 |
| 50KG | 70 | 152 | 132 | 15.5 | 51.514 | 50Mn/U71Mn | 12.5 |
| CRANE RAIL YB/T5055-93 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |

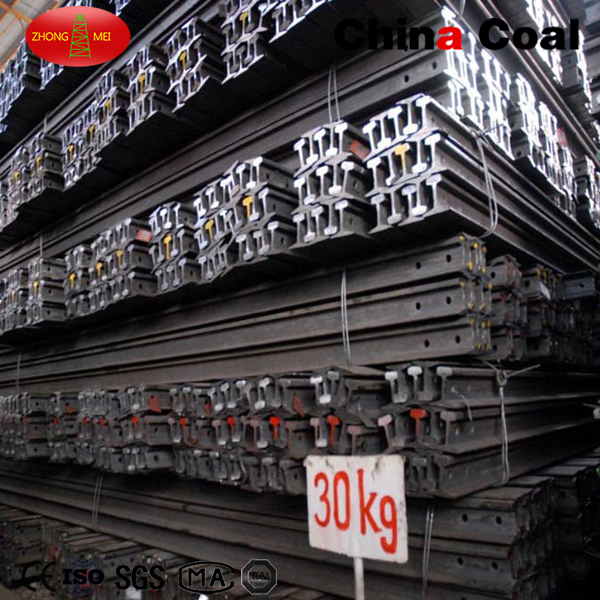

Photo OfCoal Mining Q235 55q Light Steel Rail 30kg Light Rails
Shandong China Coal Industrial & Mining Supplies Group Co.,Ltd (hereinafter referred to as China Coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China Coal is a professio
nal manufacturing ba
se of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine co
nstruction products with advanced high technology.
