Introduction ofHigh Quality Rail Track Railway Train Steel Rail For Sale
Here are the types of steel rails
Steel Rail includes light rails, heavy rails, crane rails and rail fittings.
1)Light rails: 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Steel grade: 55Q / Q235
Length: 6m~12m
Executive standard: refer to GB11264-89
…
2)Heavy rails: 38kg, 43kg, 50kg, 60kg
Steel grade: U71Mn / 50Mn and so on
Length: 12.5m
Executive standard: refer to GB2585-81/QB
Parameter Of Factory Price Q235 Material 15kg/M Railroad Track Light Steel Rail
Name
of
Commodity | Specificaton | Materials | StandardofProducts | Theory
Weight | Length
ofDimension
(m) | Packedin
bundlewithironwire
(pcs/bundle) |
| LightRail | 8kg/m | Q235 | Q/YYG001-2008 | 8.42kg/m | 6,8,9,10 | 55 |
| 12kg/m | Q235 | GB11264-89 | 12.2kg/m | 36 |
| 15kg/m | Q235/55Q/50Q | GB11264-89 | 15.2kg/m | 28 |
| 18kg/m | Q235/55Q/50Q | YB222-63 | 18.02kg/m | 21 |
| 22kg/m | Q235/55Q/50Q | GB11264-89 | 22.3kg/m | 21 |
| 24kg/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kg/m | 21 |
| 30kg/m | Q235/55Q/50Q | GB11264-89 | 30.1kg/m | 15 |
| HEAVY RAIL GB2585-2007 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| 38KG | 68 | 134 | 114 | 13 | 38.733 | 50Mn/U71Mn | 12.5 |
| 43KG | 70 | 140 | 114 | 14.5 | 44.653 | 50Mn/U71Mn | 12.5 |
| 50KG | 70 | 152 | 132 | 15.5 | 51.514 | 50Mn/U71Mn | 12.5 |
| CRANE RAIL YB/T5055-93 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |
Parameter OfHigh Quality Rail Track Railway Train Steel Rail For Sale

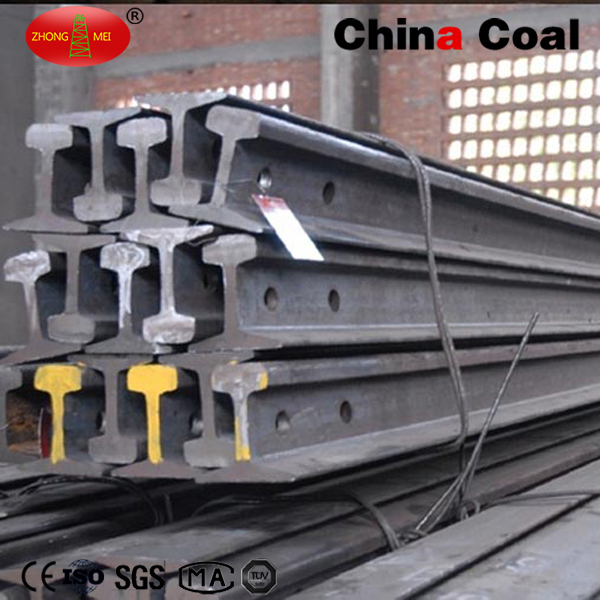

Photo OfHigh Quality Rail Track Railway Train Steel Rail For Sale
In order to ensure better quality, our steel rails have to undergo many tests, including chemical composition test, tensile strength test, hardness test and the drop weight test.
According to clients' demands, we can provide various specification rails with different maters rail/steel grade .Parameter ofFactory Price 38kg Heavy Duty Railway Steel Train Rail
Shandong China Coal Industrial & Mining Supplies Group Co.,Ltd (hereinafter referred to as China Coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China Coal is a professio
nal manufacturing ba
se of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine co
nstruction products with advanced high technology.
