Railroad Track Fastening Clips by Factory Supply

Product detials

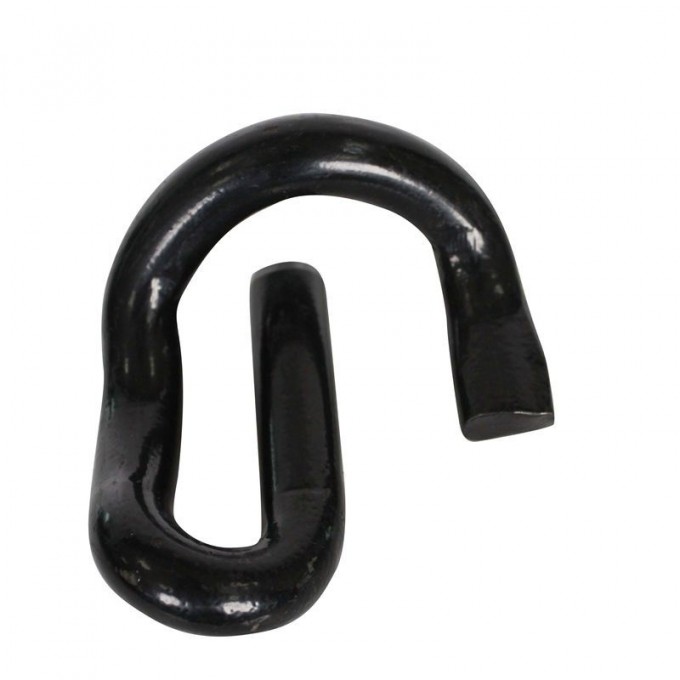

Name	Clip-E2055 Railway Fasteners System for Subway
Material	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
Chemical composition(%)	C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	HRC 42-47
Fatigue life	5 millions cycles without breaking
Surface	Plain (oiled), Oxide black, color painting
Standard refers	GB/T 1222,DIN 17221

Company information

We produce and supply W14 rail clips according to DIN and GB standard.We source certificated steel manufactuer by CRCC.
We produce the clips with bar size 13mm, 14mm and 15mm.
The testing items including fatigue life, clamping force, hardness, electronic resistance.
This type of fastening are used for UIC54, UIC60, P43, P50, R65, 115RE, 136RE rail tracks, they can also be used crane rail fastening.
If you need further information about this fastening, please contact our sales people.
Zhongbo Railway Fastening Company is aleading Chinese manufacturer of rail fastening and rail joint bar.

Zhongbo, as aspecialized rail fastener manufacturer, provides acomplete line of products, including rail fastening, anchor, rail joint, rail clip, rail screw, anchor bolt, rail clamp plate, rail fishplate, and fishplate bolt for connecting rail tracks.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products.We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.

Our products are mainly made through hot forging.

The threads of rail screw spikes are made by hot rolling with special threading machines.

We produce metric threads, BS, BSW, TR thread, or round threads.



Certificate
