Detailed Description
Introduction Of15kg Track Rail Steel Rail Price For Mining Tunnel Railroad
Here are the types of steel rails
Steel Rail includes light rails, heavy rails, crane rails and rail fittings.
1)Light rails: 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Steel grade: 55Q / Q235
Length: 6m~12m
Executive standard: refer to GB11264-89
…
2)Heavy rails: 38kg, 43kg, 50kg, 60kg
Steel grade: U71Mn / 50Mn and so on
Length: 12.5m
Executive standard: refer to GB2585-81/QB
Name
of
Commodity | Specificaton | Materials | StandardofProducts | Theory
Weight | Length
ofDimension
(m) | Packedin
bundlewithironwire
(pcs/bundle) |
| LightRail | 4kg/m | Q235 | Q/YYG001-2008 | 4kg/m | 6,8,9,10 | 75 |
| 8kg/m | Q235 | Q/YYG001-2008 | 8.42kg/m | 55 |
| 12kg/m | Q235 | GB11264-89 | 12.2kg/m | 36 |
| 15kg/m | Q235/55Q/50Q | GB11264-89 | 15.2kg/m | 28 |
| 18kg/m | Q235/55Q/50Q | YB222-63 | 18.02kg/m | 21 |
| 22kg/m | Q235/55Q/50Q | GB11264-89 | 22.3kg/m | 21 |
| 24kg/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kg/m | 21 |
| 30kg/m | Q235/55Q/50Q | GB11264-89 | 30.1kg/m | 15 |
| HEAVY RAIL GB2585-2007 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| 38KG | 68 | 134 | 114 | 13 | 38.733 | 50Mn/U71Mn | 12.5 |
| 43KG | 70 | 140 | 114 | 14.5 | 44.653 | 50Mn/U71Mn | 12.5 |
| 50KG | 70 | 152 | 132 | 15.5 | 51.514 | 50Mn/U71Mn | 12.5 |
| CRANE RAIL YB/T5055-93 |
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) |
| HEAD A (mm) | HEIGHT B (mm) | base C (mm) | WEB D (mm) |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |

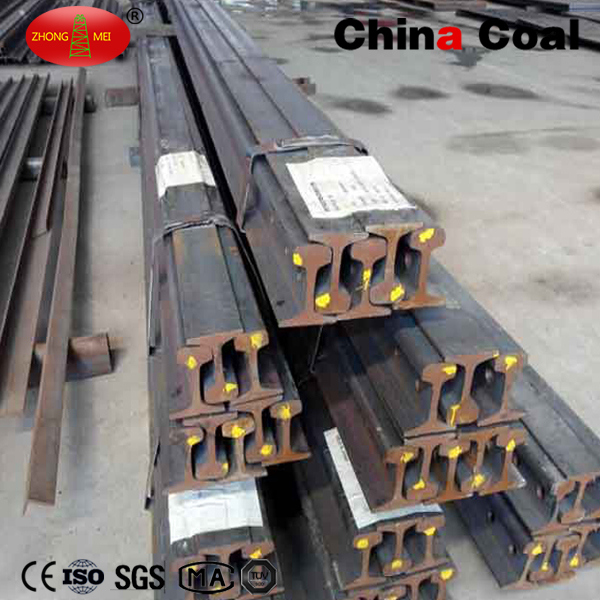

Photo Of15kg Track Rail Steel Rail Price For Mining Tunnel Railroad
Product Image
