JAC 4cbm 3cbm Waste Collection Compactor Garbage Truck

>>Part I: Truck specification

JAC 4cbm 3cbm waste collection compactor garbage truckspecification:

Item		unit	parameter
Vehicle model			CLW5060ZYS3Garbage Compactor Truck
Chassis model			HFC1081P91K1C5ZV
Overall dimensions		mm	7040*2300*2650
	Fact cubage	kg	4000
	Mass in working order	kg	Appro5910
	Body internal dimensions	mm	/
	Wheel base		3365
Max speed		km/h	95
Engine		type	WP3Q130E50
		Manufacture	Weichai power Yangzhou diesel engine
		Emission standard	Europe V
		Displacemenet/power	2970ml/150HP
Tire specification			7.00R15
transmission			5-speed with over drive
Brake			Air brake, front/rear drum axles
Driver seat			Right hand drive
Suspension			Mechanical suspension
Others			Clutch power, adjustable steering wheel, power steering, engine tachometer, heater, Shoufang Ji + AUX, exhaust brake
Body Special function
1		Body material		Side 3mm , bottom 4mm
2		Sewage tank		200L
3		Filler capacity		1.2M3
4		Fill time		8-10s
5		Discharge time		30-40s
6		Hydraulic pssure		16MPa
7		Control		Electronically controlled with manual
8		others		With turnover system

Rear loadershave an opening at the rear that awaste collectorcan throw waste bags or empty the contents ofbinsinto. Often in many areas they have a lifting mechanism to automatically empty large carts without the operator having to lift the waste by hand.[6]

Another popular system for the rear loader is a rear load container specially built to fit a groove in the truck. The truck will have a chain or cable system for upending the container. The waste will then slide into the hopper of the truck.

The modern rear loader usually compacts the waste using ahydraulicallypowered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compss it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard namepacker blade) which is designed to apply pointpssureto the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

Compactor designs, however, have been many and varied, however the two most popular in use today are the "sweep and slide" system (first pioneered on the Leach 2R Packmaster), where the packer blade pivots on a moving carriage which slides back and forth, and the "swing link" system (such as the Dempster Routechief) where the blade literally swings on a "pendulum"-style mechanism. The Heil Colectomatic used a combination of a lifting loading hopper and a pivoting sweeper blade to clear and compact waste in anticipation of the next load.

So-called "continuous" compactors were popular in the 1960s and 1970s. The GermanSharkdesign (later Rotopss) used a huge rotating drum, analogous to a cement mixer, in conjunction with a serratedaugerto grind down and compact the garbage. SEMAT-Rey of France pioneered the rotating rake system (also used in the BritishShelvoke and DrewryRevopak) to both mutilate waste and break down large items. Other systems used a largeArchimedes' screwto draw in waste and mutilate it inside the body. A mixture of safety concerns, and higher fuel consumption has seen a decline in the popularity of continuously compacting garbage trucks. The Rotopss design remains popular due to its niche in being able to effectively deal with green waste forcomposting.

The wall will move towards the front of the vehicle as the pssure forces the hydraulic valves to open, or as the operator moves it with a manual control.

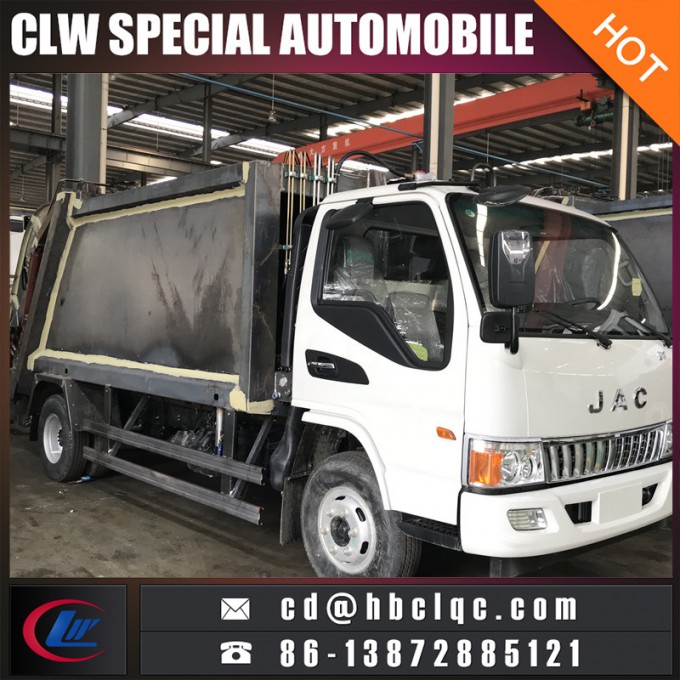

Photo ofJAC 4cbm 3cbm waste collection compactor garbage truck:













>>Part II:Company Introduction
1,ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturerin China.also we arefamous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such aswater truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more,our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field forover 10 years,we have more than 300 typesof special trucks, our workers are morethan 1000and factory is more than690,000m2.We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countriesmore than 4000 trucksevery year.

3.Quality control:our company truckpass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4.Design capacity :Our factory have 30 technician and designer.

5. Exhibition:our factory attend the Guangzhou Trade Fair each year.

6. Export market:Africa,Asia,South America,Pacific and so on

7.Our company cooperate with famous chasis manufacturers,such asDONGFENG,FAW,SHINOTRUK,IVECO,FOTON,SHACMAN ,JAC , JMC ,KARRY,CHANGAN, HonGYAN , ISUZU, HINO ,NORTHBENZ , and etc.

8.Factory Show:


>>Part III:Certificate



>>Part IV:Shipment

>>Part V:FAQ
Q1. Your service
A:Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.LC terms is also can be accepted .

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .

Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.For standard products, delivery time is as below:Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. How to control truck quality?
A: we have Rich experienceworkers and engineer to control quality before and on production , we strictly followed STATE special truck technical specificationandsafety production specification .We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.Q9. Did you sell truck to our country before?A:Our main market is Africa, Asia, South America , Oceania,middle east , annual sales is around 5000units and keeping growing every year .Q10,If you have no certificate for exporting trucks to our country , what should we do?A:There are some regions and countries we can not export completed truck but we can make body according to your requirements and send to you , you install it on your own chassis and sell completed truck .this can help you to save cost and increase competitiveness
