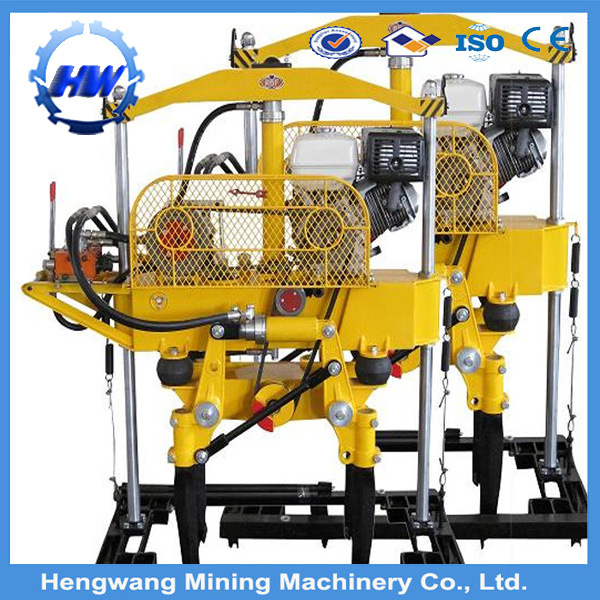

YD-22 Hydraulic Rail Tamping Machine/ Railway Ballast Tamper
Product Introduction
YD-22hydraulicballasttampingmachineisaspecialpurposemachineryusedinthe
maintenanceoftherailwayworks.
Itismainlyusedfortheballasttampingoftherailsleeper.Itcanbeusedtoworkinthe intervaltimeofthetrainsandnoneedforintervalclose.Ithasthreekindsofengine:
gasoline,dieselandmotor.
Technology Parameters
| Model | YD-22 Hydraulic Ballast Tamping Machine |
| Y132S-2 Electric Motor | 5.5KW |
| 2880r/min | |
| 380V/50HZ | |
| Hydraulic System Pressure | 5-6MPa |
| Vibrating Frequency | 60-67HZ |
| Vibrating Force | 22KN |
| Max.Insert Force | 16KN |
| Clamping Force | 6.5KNx2 |
| Inserting Depth | 110mm±10mm |
| Efficiency | ≥260pcs/(set·hour) |
| Weight | 350KG |
| Dimension | 1300x750x1600mm |
The real details photo
