Detailed Description
railway maintenance machine railway tamping machine
Rail Gasoline ballast tamper Novel design, compact structure, is akind of stamping equipment, rapidly up and down, particularly co
nvenient operation ,suited to switch tamping homework.
1.Adopts two-stroke gasoline engine .
2.No noise, stable working, co
nvenient operation.
3.Advanced design, reaso
nable structure, co
nvenient maintenance, easy maintenance, small volume, light weight.
Technical Parameters of HW-4 Railway Ballast Tamper :
| Model | HW-4 |
| Engine power | 1.47KW |
| Exciting force | >=4.2KN |
| No load amplitude | >=5mm |
| vibration frequency | 120~150Hz |
| Vibratory rod diameter | 52mm |
| Eccentric block rotation speed | 7000-8000r/min |
| Overall weight | 16kg |
| Dimension | 1020x350x260mm |

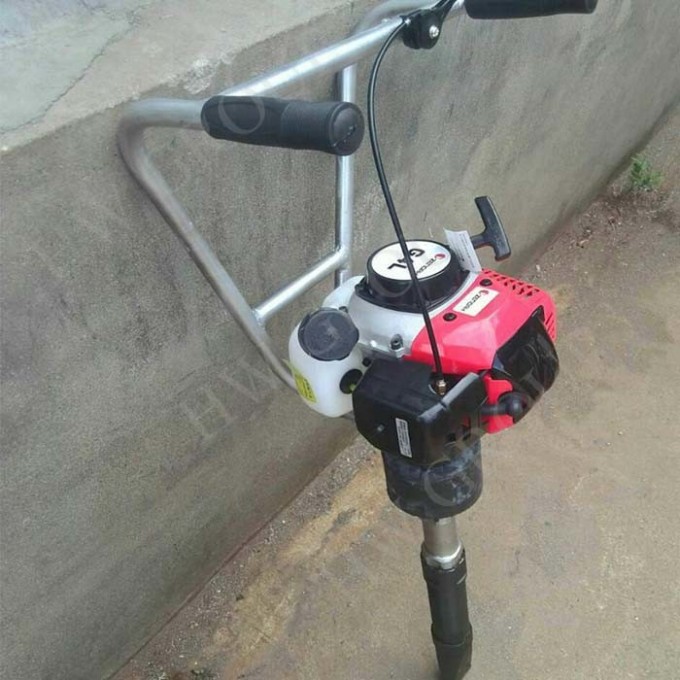

Pictures of HW-4 Railway Ballast Tamper :
