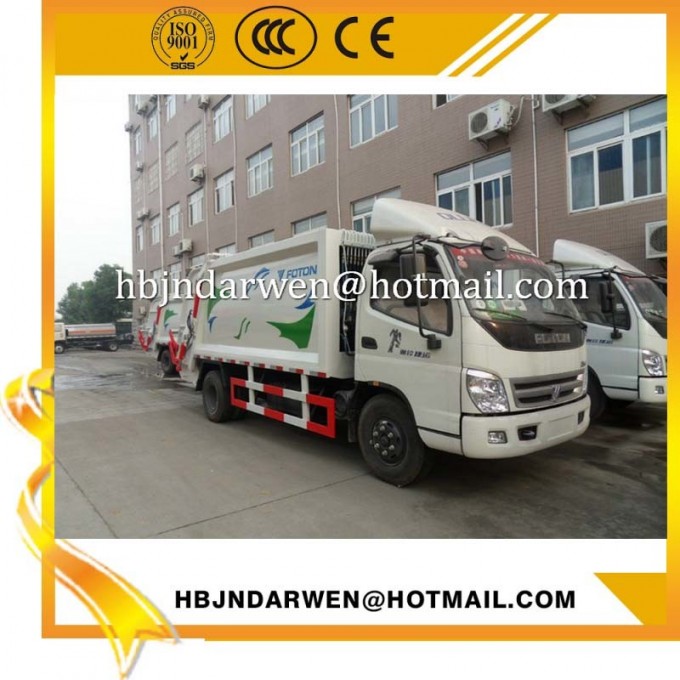

8cbm Recycling Garbage Crush Compactor Truck Foton

Basic Information

Outline size(L×W×H)(mm)

Cargo inline size(L×W×H)(mm):

/

Rating mass(kg)

/

Empty mass(Kg):

4850

Full mass(kg)

8495

Emission standard

Euro 3

Engine Information

Power/displacement(KW/ML)

122HP

Type

Diesel engine

Chassis Information

Wheelbase(mm):

3815

Axle load(kg) F/R

3565/5865

Tire

8.25-16

Max speed (km/h):

95

Front suspension(mm)

1210

Rear suspension(mm)

1805

Front track(mm)

1770

Rear track(mm)

1680

Approach angel(°)

24

Departure angle(°)

14

Steering

Power steering

Brake

Air brake

Configuration

1,Optional 120L ,240L(single box,Double barrel)Or 360L,660L,garbage binlifting tilting mechanism, You can also choose other types of ground hopper loading mechanism.

2,There are two sets of manual and automatic control Method, the operator can control the cabin or in the middle of the back side Truck, very convenient and effective.

3,Emergency braking device stops working button.

4,Garbage body with a frame design, elegant appearance, solid structure, Large effective capacity.

5,With a special collection box, sewage Direct access during compssion cesspool that Effectively pvent secondary pollution caused by sewage leaks.

6,Hydraulic system design, realization truck Bi garbage compssion function, which is to improve the compssion The compssion ratio up to 1: 2.5, the garbage can reach more than 600~800 kg/Compssed cubic meters.
