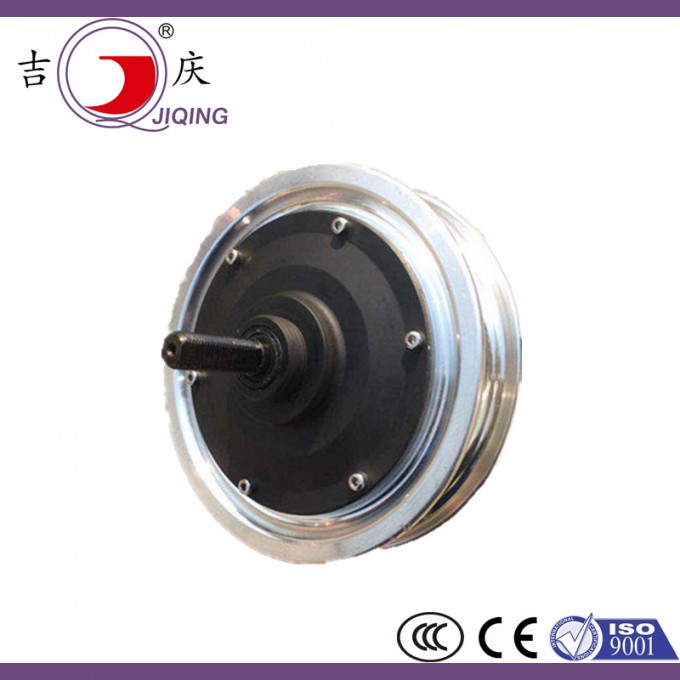

8/10 Inch 250W Electric Scooter Bicycle Motor

8/10 inch 250W Electric Scooter bicycle motor

Wheel Size	8/10 inch (Depend on Your Demand)
Rated Speed(rpm)	620±10rpm
No Load Current(A)	0.9 A
Rated Power(W)	250 W
Rated Voltage(V)	36 V
Max torque	25 N.m
Brake Type	Drum Brake/No Braking
Weight (KG)	2.5 KG
Rated Efficiency (%)	≥80
Material	Aluminium alloy (Depending on Your Demand)
Certificates	CCC,CE,ISO9001,UL

Our8/10 inch 250W Electric Scooter bicycle motorcharacteristics

-Low noise

-Electricity saving

-High torque

-High strength

-High safety coefficient, high efficiency

-Long service life

-Not easy to be hot

-Big power

The hub motor is steadily emerging as the standard drive method for not just ebikes, but scooters, solar cars, and many other light electric vehicles. With ahub motor conversion, there is no need for external mounting brackets and drive chains to support amotor and transmission. Instead all of this is contained inside the wheel which mounts on your bike like any other wheel.

The direct drive hub motor is about as simple as things get. Imagine taking an electric motor, but holding the axle and letting the body of the motor spin. Now lace abicycle rim onto this spinning motor body and there you have it, no moving parts other than the wheel itself.

Typically these are radial-flux Brushless DC (BLDC) machines that have an array of permanent magnets on the inside surface of the hub. The stator windings are attached to the axle, and the hub is made to rotate by alternating currents through these windings. In aDC hub motor, the magnets are on the axle, and the windings are actually spinning on the inside of the hub. Acarbon brush transmits electricity to the spinning windings via acommutator plate.

Q: Before place an order, how can Ichoose?
A: Please specify the wheel diameter size, width, voltage, power and no-load speed of
the required wheel motor.

Q: Could Itake samples to test quality and market in advance?
A: Yes, welcome to take samples to test our quality and service.

Q: What's the total cost for samples?
A: Total sample cost= sample cost +freight. We will give uthe best shipping cost after
knowing the wheel size, battery needed or not.

Q: How do you ship samples?
A: Considering sample quantity is not big, we support ship samples by EMS, TNT or
FedEx, fast and less damages.

Q: What's your minimum order quantity?
A: 100sets, one or two samples are ok.

Q: Could Iuse my own forwarder?
A: Yes

Q: Iam new to international business, could you find an experienced forwarder to
organize shipment for us?
A: Yes, we will assist and guild you to work out the shipping and import process.

Q: Is the sample same with formal orders?
A: Yes, sample's specification, performance, quality are totally same with formal orders.

Q: What's your delivery time?
A: For samples: within 7days; for orders: within 15days.
