New Style Electronic Foldable Battery Powered Bicycles with CE

New Style Electronic Foldable Battery Powered Bicycles with CE

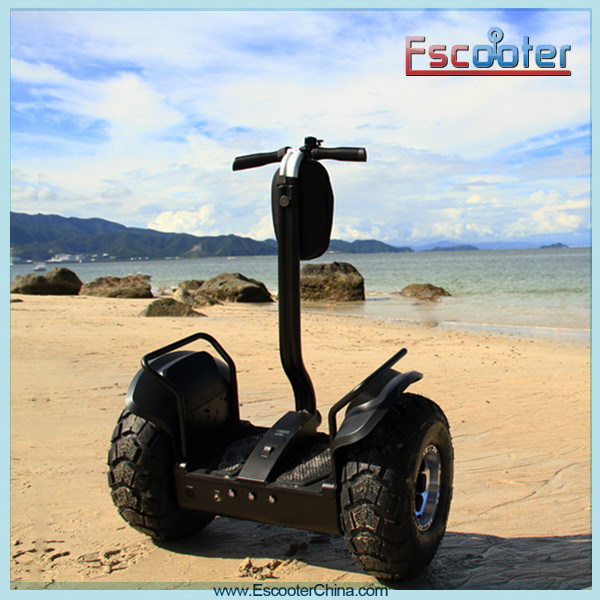

Working principle of Chariot Scooter
based on the basic principle of "motion stability", that is to say, vehicle's automatic balance ability, ESOI can judge the position, status of vehicle by its built-in pcise solid-state gyroscope and then drive its motors to balance the vehicle after receiving the commands from high-speed CPU inside.

Driving ability of electric pocket bike
With 2 strong motors, 800W per motor (2 motors can be 1600W), FreeGo 2 wheel scooter can move at the speed up to 18 km/h. Through a smart transmission, the ESOI drives 2 PCS of 16-inch high strength vacuum tires which makes it moves stable and comfortable no matter it is indoor or outdoor

The source of power
The power source of ESOI comes from the 2 rechargeable powerful batteries (12V@14AH) which can work for 2.5 hours and moves 30--35 km for one time fully charge.

Feature of new model:
1. New steering mechanism, more stable and comfortable, faster response
2. Updated process motherboard, more safe and easy to be controlled
3. Waterproof
4. Advanced design for steer and handle, beauty and fashion
5. More exquisite and light steering mechanism, more flexible turning
6. New model pedal with 4 detecting switch. Driver will not fall down in driving.
7. Adjusting big power importing motor. Max power of single wheel can achieve 800W, easy to climb continuously 30 degree slope.
8. Siren alarm, reminding the statue of scooter
9. GPS tracking is optional
10. High quality wheel with smooth racing tire.

Performance Parameter of mobility scooter

Max speed: 11.5 mph / 18 km/h
Dimension: 43*43*68 cm
Max load: 240 lbs / 110 kg
Battery: Two power lead acid
Motor: Two import DC Motor, DC servo drives
Wheel: 12 in / 26 cm Black Aluminum Rim
Tire: 17 in / 43 cm vacuum smooth
Height of footplate: 10in/26cm
Net Weight: 43 kg
Max distance: 30 km depends on terrain and driving skill

Packing list (Standard kits/parts)

Handle: 1 PC
Key: 2 PCS
User manual: 1 PC
Driving handle: 1 PC
Extra fuse: 4 PCS
Pedal mat: 2 PCS
Fender: 2 PCS
Tire: 2 PCS
Battery charger: 1 PC

Packing of electric scooter
Inner: Carton, Outer: Plywood box
Gross weight: 58kg/carton
CTN demission: 47*47*74cm
Volume: 0.18cbm
135PCS/1container (20#)

Net Weight	56kg
Dimension	91*54*72 cm
Max. cruise speed	20km/h
Max. load	150kg
Max. mileage	30-35km
Max. climb capability	30 degree
Min. turning radius	0 degree
Charging time	6-8h
Battery	PB, 36V, 42Ah
Voltage	100v-240v
Max. power	2000w (2*1000w/pc)
Life of battery	1-3 years
Tire	19inches vacuum,anti pucture
Wheel	Superior integrated aluminum magnesium alloy
Height of handle	800-1100 mm adjustable
Height of footplate	10inches
Specifications of footplate	11.5*25 in
Max. height above ground	120mm
Standard pssure	250kpa
Colors	7 colors available
Certifications	CE, FCC, ROHS
