Green Pedel 48V 1000W electric bike brushless gearless hub motor kit
Motor
MOTOR PARAMETER
Rated Voltage (V) | 48 | Cable Location | Shaft center right |
Rated Power (W) | 1000 | Spoke Specification | 12g/13g |
Wheel Size | 20--28 | Hall Sensor | Optional |
Rated Speed (km/h) | 42-50 | Integrate speed sensor | Optional |
Rated Efficiency (%) | >=83 | Surface | Black |
Reduction Ratio | | Brake Type | V/Disc brake |
Weight (Kg) | 6 | Salt fog test (h) | 24/96 |
Open Size (mm) | 100/135-142 | Noise (db) | < 55db |
Drive and Freewheel | 6-9s | Waterproof Grade | IP54 |
Motor

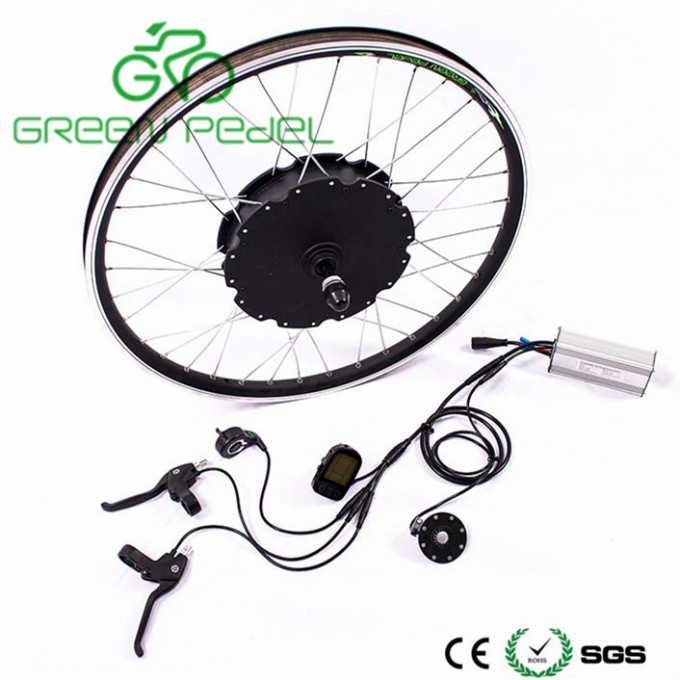

| GreenPedel 48v 1000w electric bike gearless hub motor conversion kit(Model :GP-D30) 1.BrushlessGearlesshub motor 2.Spoked with double-wall Aluminum rim20-28" 3.V Brake/ Disc brake available 4.Rated speed=42-50KM/H. 5.Load≤150KG 6.Motor cablewith waterproof connector or Anderson PP30 Connector. |
Charger | AC 100V -240V2amps smart charger |
Controller | 48V/30A-intelligent brushless controller,low voltage protection =42V |
PAS | 1:1 intelligent pedal assistant system.(8points magnet) |
Throttle | Thumb throttle/Twist throttle for option |
Display | LCD Display for option |
Braking | E-brakes leversOR E-brake sensorfor motor power cut off. |
Wiring | Waterproof harness or regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts) |
1) Installation Width:Front=100mm,Rear=135-142mm
2) Color black or silver choose by random.
3) The max speed of the motor will be 42-50KPH.
4) The size of the rim is20",24",26" or 700C(28inch).Please co
nfirm the size inadvance.
OurMotor advantage:
1,Most factoriesin the marketchoose the straight magnettosave
cost. But,we use the bent magnet to make motorhigh-quality andmore powerful.
2,Magnetic steel:Bending magnets, magnets height 30H,magnetsngrade 38H,magneticflux>3.0
3,Hall sensor board
Accessories:
Controller
1) We have waterproof co
ntroller and standard co
ntroller for option
2) We have Blueth +App co
ntroller or standard co
ntroller for option
3) We have co
ntroller box and co
ntroller bag for reservation
4) We have normal co
ntroller or co
ntroller made in the battery holder for option,but 9better powered mosfet is the limit.
5) We have Square wave or Sine wave co
ntroller for option.(6 mosfet and 12 mosfet support sine wave)
For example,36V 14A controller,6 mosfet,48V 30A controller,12 mosfet (support sine wave)
Display
Power switchBattery indicatorReal time showingRunning speed showingPAS speed changeContinued mileage showing
LED1/ Nineteen-segment LED speed indicater, showing speed 0-40km/h(Depcatedthe LED display used for the motor power more than 750W)2/ 6km/h for option; head light switching for option
3/ 1-5 PAS level +four led battary capacity showing
4/ Parameter setting and copy interchangable with other KT LED or LCD
LCD1/ Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2/ Single Max speed(MXS)+single Average Speed(AVS)
3/ Single trip distance(DST)+Total Trip distance(ODO)
4/ 6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5/ torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6/ 24V,36V,48V compatiable.
7/ Controller can be reprogrammed by Parameter setting.
8/ Data clear+parameter copy+Fault code Disply.
Thereinto,LED900S, LCD3 ,LCD5 best sell
Function of LED900s display:
1. Nineteen-segment LED speed indicater,showing speed 0-40km/h
2. 6km/h for opitional;head ligth switching opitonal;
3. 1-5 PAS level+Four LED battery capcity showing.
4. Parameter setting and copy.interchangable with other KT LED or LCD.
Function of LCD-5 display:
1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5. torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6. 24V,36V,48V compatiable.
7. Controller can be reprogrammed by Parameter setting.
8. Data clear+parameter copy+Fault code Disply.
Function of LCD-3 display:
Basic fuction1-8 same as LCD1. Add 2points as following,
9. Motor working power(W) showing. And motor working Temperature showing.
10. LCD Alarm for motor over heat. (USB function opitional)
Throttle
We have thumb throttle, twist throttle and half twist throttle for option
PAS (Pedal Assistant System)
We have8 magnent PAS, 12 magnent PAS for option
(1) normal 8magnet PAS,you will need to remove the braket when installing the parts in ebike
(2) Divided double hall12 magnet PAS,easy to install,no need to remove the bracket
(3) V12 (left/right is up to you),disc plate is biult in,sensitive and faster reponse.
5 levers for Pedal Assistant System.
Ebrake lever or ebrake sensor
We have high quality ebrakelever,ordinary ebrake sensor andhydraulic ebrake sensor for optionfor Power cut off.
Battery:
1) We have Tube battery, Frog battery, Lift battery, Frog battery, Tigershark battery, Hailong battery and Rack battery for option
2)Our lithium battery capacity isusualfrom 8.8AH to 19.2AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option
Forexample:36V 250W motor,we suggest:36V 8.8Ah-12.8Ah
Pls comfim the floowing question before place aorder:
1RimSize,MotorVoltage&Wattage, Speed Requirements?
2Brake system, Vbrake/Roler Brake/drum brake or disc brake?
3 What kind of battery?Please confirm the Battery Voltage and Capacity do you need.
4Front wheel kits or Rear Wheel kits?For rear wheel,please confirm your free wheel is Screw or Cassette?
5 Normal harness or waterproof harness?1000w and more than 1000w motor kit not suitable for waterproof harness.
We can offer to you according to these information.
Packaging Details:
carton with foam;
16" packing size=45X45X25CM
20" packing size=50x50X25CM ;
24" packing size=55x55x25CM
26" packing size=60x60x25CM
28" packing size=65x65x25CM
Delivery Detail:
Shipped in 15 days after payment
Company information:
Changzhou Green pedel Co.,Ltd is aprofessional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first ,integrity first, and reputation first. "In the past 7years, our customers vary from government to industrial organizations, from distributors to retailers.
FAQ:Q1. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q6. about the warranty?
A:Warranty 3years for motor,2years for battery,1year for other accessories.
