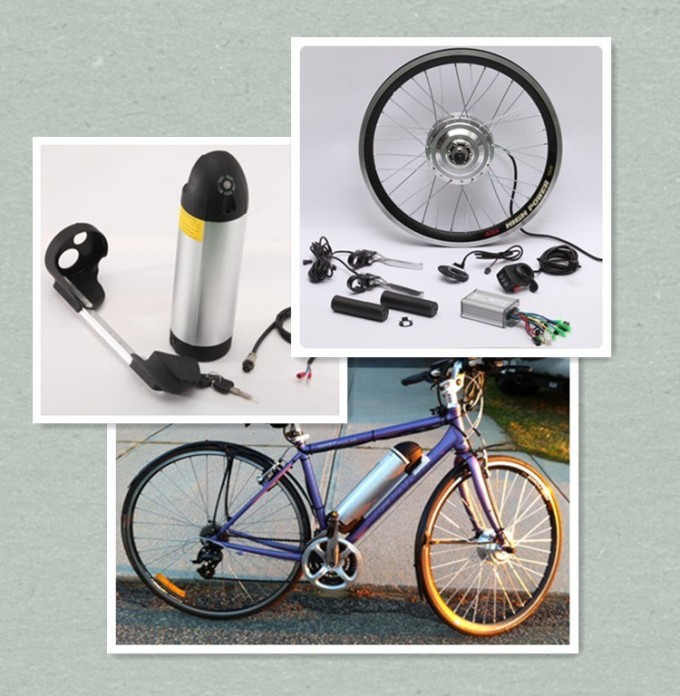

Electric Bicycle Kit 36V 250W Hub Motor Kit with 36V Lithium Battery

Electric Bicycle Kit 36V 250W Hub Motor Kit with 36V Lithium Battery
Specifications

250w 350w 500w 750w 1000w ebike kits
1. Motor: Brushless
2. Display: LED display
3. Battery: water bottle lithium battery with charger .
4. Controller: 48V26A

Motor Power	36v 250w
Motor type	brushless geared hub motor (black or sliver)
Max Speed	25-30 km/h
Magnet	24 H
Winding	8 x 0.51 -8
Torque	32N.M - 35 N.M
Wire diameter	1.2 mm²
wheelsize	16'' 20'' 24'' 26'' 28'' 700c for choosing
Warranty	2 years

48V 750W-1000W front or rear motor normal kit (normal kit)
1, Germany type motor(180° C copper winding+ best magnet)
2, Double-wall alloy rims spoke (2.6mm spokes spoked by park tool)
3, twist throttle or thumb throttle ( with three lights shows battery capacity)
4, brake(for both side power off)
5, 48V 26A controller (12MOZ tubes in it)GERMANY QUALITY
6, 1: 1 PAS
7.36v 10.4ah water bottle lithium battery with charger
8, Use manual with ties also winding pipe
9, good package can be delivered to customer directly


CE /SGS Certificate


Front VS Rear?
Front elctric bike kits= easy to install, easy to maintain. This is the best for balance if you are using SLA batteries on a rear mounted rack because of the weight.
Rear electric bike kits= harder to install, Installation only for the very mechanically inclined or professional. only enough space for 7 rear speeds max (we ship with 5 speed). Bad balance if you are using heavy SLA batteries...Good for wheelie's lol but bad and unsafe balance with SLA. Good points are that they are a slightly more natural feeling ride when using lightweight Lifepo4 batteries


Why do we use a Double Walled rim and heavy duty 12Gauge spokes? ?
In the beginning we tried various kits and many of the brush less motors were very good motors. The problem with most of the conversion kits available are that they are spoked incorrectly, use a single walled weak rim., have spokes that are the wrong length causing the spokes to be bent in an "s" shape. Simply put bicycle wheels were not made for this type of torque on them and on occasion you will need to tighten your spokes until they finally "seat" themselves.



NORMAL KIT? LCD KIT? OR LED KIT? --ACCORDING TO YOUR NEEDS AND BIKE, FOR HIGH LEVEL BIKE (MOUNTAIN OR RACE, LCD AND LED ARE HIGHLY RECOMMENDED)

PACKING SPECIFICATIONS (cm)
EBIKE KIT	12" 13" 16" 18" 20" --55*55*22
	24" --55*55*24
	26" --60*60*24
	28" & 700C 65*65*24
BATTERY	40*45*19
	40*49*21
Wheelchair KIT	63*62*39
OTHERS	IT DEPENDS
