Detailed Description

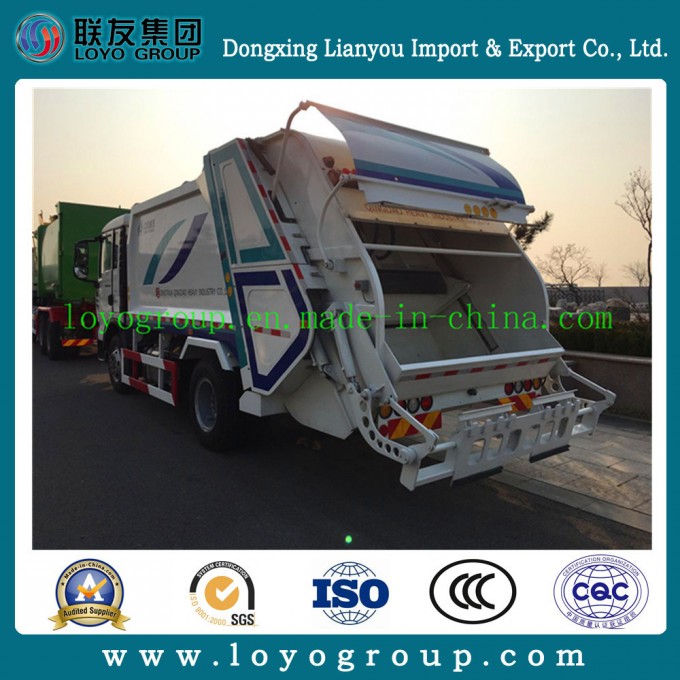

SINOTRUK HOWO 4*2 Compssed Garbage Truck |
| Driving Type 4x2 |
Chassis Model | ZZ1167M4611 |
Engine | Model | WD615.47 |
Horsepower | 266 |
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
Displacement | 9.726L |
Make SINOTRUCK (CNHTC), Euro II emission standard,Rigid fan |
Cab | HW70 HOWO long cab, with two seats, one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber |
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
Transmission | SINOTRUK HW13710CLtransmission ,12 forward and 2 reverse |
Front Axle | SINOTRUK HF7 Front Axle,HOWO 9-ton front axles of equipped with drum brakes. |
Steering | German ZF8098Steering Gear Box ,hydraulic steering with power assistance |
Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle;can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice forcustomers. |
|
Brake System | Service brake:dual circuit compssed air brake |
Parking brake (emergency brake):spring energy,compssed air operating on rear wheels |
Auxiliary brake:engine exhaust valve brake |
Tyres | Tyres: 12.00R20radial tyre with 1 Spare tire |
Electrics | Operating voltage:24V,negative grounded |
Starter:24V,7.5 Kw |
Alternator:3-phase,28V,1500 W |
Batteries:2x12 V,165 Ah |
horn,headlamps,fog lights,brake lights,indicators and reverse light |
Carriage ( dump body ) | Overall length x width x height7350x2350x2800 (mm) |
|
Weight (kg) | Kerb weight13000 |
Gross vehicle weight25000 |
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
be suitable for long distance transportation of inland and ocean. |
The manufacturer reserves the right of technical alteration /change for better improvement without |



OUR ADVANTAGE:
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan10years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan50countriesandregions
AFTER SERVICE:
LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is o
nly for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.
FAQ
Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it OK ? |
A: We can make the tires as your requirement to suit your country's need. |
Q2: What about your products quality ? |
A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning! |
Q3: Can i have samples of this type of flatbed semi trailer to test the quality ? |
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit. |
Q4: What others you can do ? |
A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rationalpackingand shipping program,let shipment save money and security. |
Q5: How to guarantee customers get the goods smoothly after they pay ? |
A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship. |
Q6:What's the delivery time ? |
A: The delivery time is within 15-30 working days after receiving your advance payment. |
Q7:Can you supply some quick-wear truck or semi trailer parts ? |
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam andsemi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc. |
