Detailed Description
Main Components:
1)ADC Motor
2)Curtis Controller
3)Sunup Transaxle
4)Trojan Battery
Cargo Car/ Electric Car/ Electric Cargo Car / Utility Car / Golf Car / Electric Vehicle
Electric system | controller | 1268/400A |
| battery | trojan/Lvtong battery 6V 8units |
| motor | 48V/4KW motor |
| charger | Computer Intelligent input 220V/110V ourput 48V 20A |
| Charging time | Less than 12 hours discharging rate 80% |
Body configuration | Glass | Sandwich glass | Sun Roof | Fiber glass |
| seat | leather | Floor | Autiskid rubber floor |
| Rear mirror | Handoperated, both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| DC/Light/Signal | 48V/12V-300W Front light turning light fog light rear light horn Buzzer |
| Body | Fiber glass |
| Dash Board | Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse |
| Braking system | Front disc and rear dram, four-wheel hydraulic brake+hand brake |
| Front axle and suspension | Independent suspension helical spring +cylinder hydraulic shock absorption |
| Rear axle and suspension | Integral type transaxle, gear ratio 12.49: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption |
| Tire diameter | 535mm |
Parameter
| Length*width*height | 4100*1483*1900mm |
| Container size | 2615*1430*550 |
| Loading passenger | 2 |
| Max speed km/h | 25km/h |
Mileage
/km | 70_ 90km flat road |
| Container size KG | 1000KG |
| Max climbing ability | 15% |
| Mini turning radium m | 4.04m |
| Mini ground clearance | 120mm |
| Wheel base | Front 1180/back 1200mm |
| Braking distance | 3.5M |

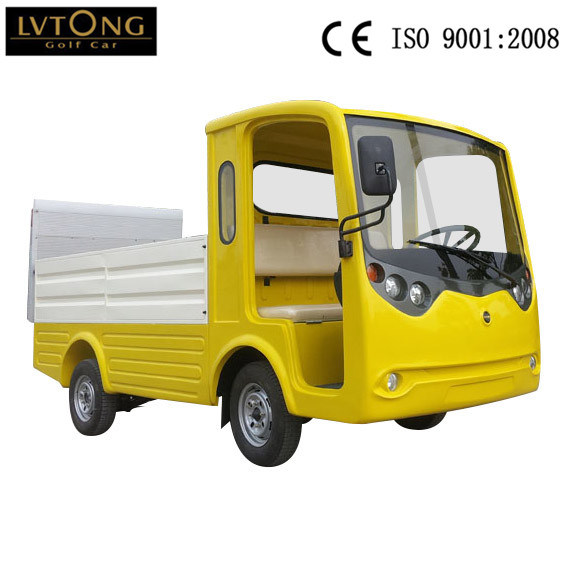

Product Image
