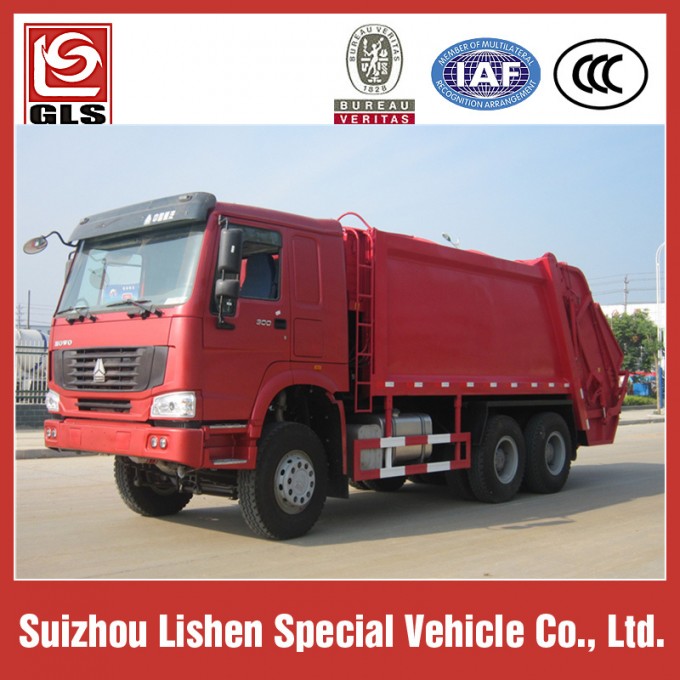

HOWO Compression Refuse Truck Garbage Truck 6X4, 290HP, for Sell

HOWO compssion refuse truck garbage truck 6x4, 290hp, for sell
Driving type 6x4 lift hand drive Specifications
Chassis ZZ3257M4347
Engine
Make:SINOTRUK
Diesel:4-stroke direct injection diesel engine
Engine model:WD615,Euro2, emission standard
6-cylinder in-line with water cooling, turbo-charging and inter cooling
Maximum output:290 hp(213KW)at 2200 rpm
Maximum torque:1160 Nm at 1100-1600 rpm
Number of cylinder:6
Displacement:9.726 L
Bore:130mm
Stroke:126mm
Compssion ratio:27.35 hp/L
Specific fuel consumption:189g/KWh
Engine oil filling quantity:19L
Cooling system filling quantity(long-term filling):40 L
Thermostat with 71ºC opening begin
Single cylinder air compssor
Rigid fan
Driver's Cab
HW76 standard cab, one berth, all-steel forward control, 2-arm windscreen wiper system with three speeds, laminated windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, adjustable roof flap, with stereo ratio/cassette recorder, sun visor, adjustable steering wheel, air horn, air conditioner, with 4-point support fully floating suspension and shock absorbers.
Clutch
Single-plate dry clutch, diameter 420mm, hydraulically operating with air assistance
Transmission HW15710, 10 forward, 2reverse
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HF7, 7tons axles, steering with double T-cross section beam
Rear Axle
HW1667, 16 tons axles with one axle driving, pssed axle housing, central single reduction with hub reduction and with differential locks
Ratio:3.73
Chassis
frame:U-profile parallel ladder frame with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members
Front suspension:9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:15 leaf semi-elliptic springs with hydraulic telescopic double-action shock absorber
Aluminum fuel tank:200 lcapacity with locking fuel cap, fitted to the off side of the chassis
Steering
ZF8098, hydraulic steering with power assistance
Ratio:26.2
Brakes
Service brake:Dual circuit compssed air brake
Parking brake (emergency brake):Spring energy, compssed air operating on rear wheels
Auxiliary brake:Engine exhaust brake
Wheels &Tires
Rims:9.0-20, 10 hole-steel
Tyres:12.00-20 tube
Electrics
Operating voltage:24 V, negative grounded
Starter:24 V, 5.4Kw
Alternator:28 V, 1000 W
Batteries:2×12 V, 165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Dimensions in mm
Wheel base 4325+1350
Front wheel track 2022/2041
Rear wheel track 1830
Front overhang 1500
Rear overhang 3175
Approach angle( °) 16
Depar ture angle( °) 15
Overall dimension(L xW xH mm) 10400x2500x3560
Weight in kg
Dead weight 9450
Rated loading capacity 13600
Gross vehicle weight 25000
Performance
Maximum driving speed(km/h) 90
Maximum grade ability(%) 39
Minimum ground clearance(mm) 298
Minimum turning circle(m) 18.6
Fuel consumption(1/100km) 28
Body
Volume of body(m3) 18
Volume of filler (m3) 2.0
Time of one filling cycle(s) ≤25
Li fting time of filler (s) 8-10
Time of discharge (s) ≤40
Front/rear sewage capacity (L) 250+150
Max compssion force (kg)>25000
The manufacturer reserves the right of technical alteration/change for better improvement without prior notice!

DELIVERY TIME:WITHIN 35DAYS
