China Bus

School Bus, New model


Items Specifications
Model SC6708BLAS

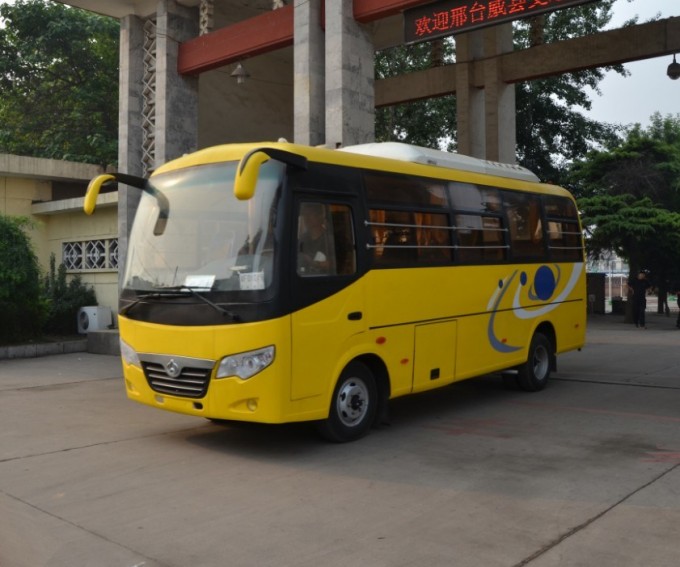

Type Attached photo
Body Structure Semi-load supporting type
Length 6730± 30mm
Width 2160± 15mm
Height 2930± 15mm(with A/C )
Wheel base 3800± 10mm
Max G. Weight 6650KG
Seat Capacity 30
Driver seat Adjustable, with 3-point belt
Windshield 2 part-Top green tinted
Window glasses Tinted
Passenger doorOne single middle passenger doors
Driver door Yes
First step from ground≤ 400mm
A/C16000Kcal, Top-type
Interior trimmingPVC, Vinyl covered
EngineModelDiesel, EQB125-20, 4 Cyl's ( Cummins in China)
Max P. 92KW(125hp),
EmissionEuro II
Displ. 3900cc
Max speed≥ 105KM/H
TransmissionManual, 5 speed
SteeringLeft handle, Power steering
Min. Turning radius≤ 7.5M
Brake SystemAir brake
SuspensionFew Leaf Spring + Absorbers
ClutchSingle disc, dry type, Diaphragm Spring
Electrical system24V
Alternator & starter motor120A,
Oil tank CapacitySingle (85L)
TyreRadial Tyre, 7.00R16
Roof ventilatorNo
Rearview mirror2 external + 1 internal, and one mirror in the rear of the bus
HeaterYes
Radio cassetteYes
Tools1 Standard tool box (Jack, spanner, etc. )
Accessories2 Fire extinguisher (4kg), 1 First Aid Kit.
FloorWooden floor with anti-slipping rubber
Partition1 partition board between driver and passengers(should be made transparent)
Interior lightingRoof lights and step light
