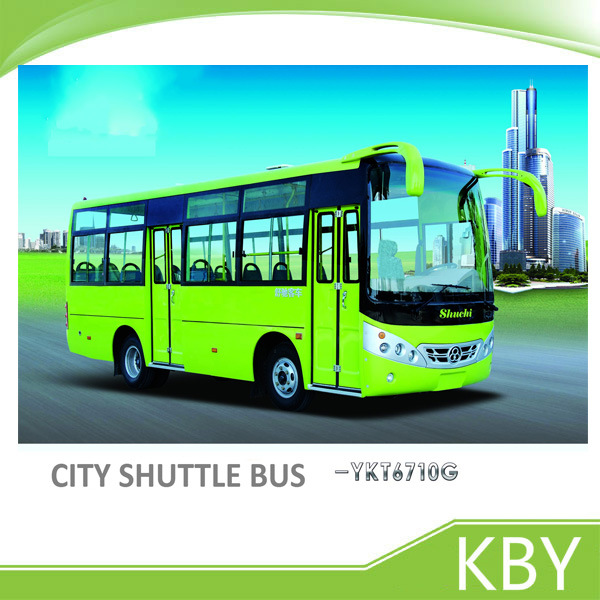

Luxury Long Route Passenger Car Shuttel Bus

(Please ask for catalogue if you are interested in this type. 37 sets, 7.7m.+8m Long Router City Shuttle Bus)
Quality Standard City Coah Bus
We are the old and professional manufacturer in China]\
37 seats
47 seats optional with toilet
49 seats without toilet

Euro II
Diesel


Left hand drive, if right hand, please communicate. Some models we have right drive.
PARAMETERS
1. Overall length7060mm
2. Overall width2,260mm
3. Overall height2900 mm (3100)
4. Ground clearance230mm (min) (from the ground level to the lowest point
of the differential box)230mm
5. No. of axle2Axles
6. Wheel base6,000mm
7. Front overhang2,600mm
8. Rear overhang3,380mm
9.Approach angles ≥8°
10.Departure angles ≥8°
CAPACITIES
1. Gross weight18,000kg
2. Permitted front axle load6,500 kg
3. Permitted rear axle load11,500 kg
4. Unladed13,700 kg

ENGINE
1. Model YC4F115-30 CY4102-C3C YC4D130-30
2. Type 6 cylinder 4 stroke in-line, turbocharged withair-air intercooler, water cooled
3. Power260Kw(354hp)
4. FuelDiesel
5. EmissionEuro2
6. ExhaustPipe orificedirection backwards
7. CoolingSafety air filter
GEARBOX
1. MakeZF6AP2000B
2. TypeAT
3. Vehicle speed (Max)120km/h(Limited)
AXLES
1. Front axleF- 7.5/C22.5(Mercedes-Benz)
2. Rear axleRO440- 13A/C22.5(Mercedes-Benz)
BRAKES
1. OperationPneumatic dual circuit front /rear discbrakes
2. ParkingSpring actuator at rear wheels
3.Auxiliarybrake Engine inner brake / engine exhaust brake/ hydraulic retarder.
4. Air dryerWABCO air dryer
5.ABS/ASR WABCO ABS/ASR
6.Pipe Polyamidepipes
SUSPENSION
1. GeneralAir suspension , front 2/rear 4 air springs
2. StabilizerFrontand rear stabilizer
3. Absorbers2/4 Sachsabsorbers
STEERING
1. TypeZF8098 Hydraulic Power assisted steering
2. ColumnSolid shaft steering column, height and rack adjustable
3. WheelModern steering wheel with horn button
WHEELS
RimDisc wheels rim size8.25 X22.5(7pcs)
TiresTires(size) 295/80R22.5 tubeless(7pcs)
CarrierEquipped
ELECTRICITY
1. BatteryTwo 12V195Ah(lead-acid) batteries in series (totally 24V)
2. HornElectronic type horn
3. LampModern looking front, rear and top
4. WiperSteel wipers (variable speed) and washers
FUELFuel Diesel
Fuel tankcapacity(L)400L
DOORS
1. First doorPneumatically operated outside swing door Aluminum alloy stylefront door
2. Second doorPneumatically operated outside swing door Aluminum alloy stylemiddledoor
WINDOWS
1. WindscreenCurved onepiece laminated glass
2. Side windowsSliding tempered safety glass with lock
3. Driver windowDouble sliding tempered safety glass
4. Rear windowOne piece tempered safety glass
INSULATION
1. CeilingInsulation against heat
2. SidesInsulation against heat and noise
3. EngineInsulation against heat and noise
VENTILATION
1. Windscreen Efficient defroster for rainy periods
2. HatchTwo manually operated hatch type
SEATS
1. Passenger seatsSoft nap cloth Passengerseats, Adjustable high back with seat safety belt
2. Driver seatsThree-way adjustablesoft nap cloth driver seat with seat safety belt
3. Tour guider seatEquipped
LIGHTS
1. Passenger AreaLED lampceiling mounted
2. Driver AreaLight above driver seat
3. Principal DoorsStep lights
4. Reading lightEquipped
INTERIOR
1. LiningSoftLiningEasily cleanable
2. partitionpartition between driver and passenger
3. DashboardForming soft type, functional and modern design
4. Floor Wood floor
5. Floor covering Wearable leather floor
6. Inner luggage rack Equipped
7. Digital clock Equipped
8. Internalrear view mirrorEquipped
9. Backup monitor Equipped
10. Windshield half sun visor of rolling blindEquipped
11.Driver sunlight shadeEquipped
12. Curtains Equipped
13.Extinguisher4Kgx2
14. Safetyhammer 5pcs
15.ToolsSet of hand tools
16.HandrailsHandrailsmounted nearby doors
EXTERIOR
1. Rear view mirror Functional and modern design
2. DevicesStrong towing devices in front and rear
3. GuardsMud guards behind each wheel
4. Wheel rim cover Equipped
5. Out luggage compartmentEquipped
6. Engine compartment. auto fire extinguisher
7.PaintingCustomerrecommended painting
SERVICE
AM/FM radio and MP3 (Integratedin DVD)Equipped
Water dispenserNon- Equipped(Optional)
3. DVD+17"color monitor(Front /middle)Equipped
4. ToiletNon- Equipped(Optional)
AIRCONDITION
1.A/C ModelDependentA/C
2.Cooling capacity34000kcal/h
3. HeaterNon- Equipped (Optional)
COMMENTS
1. ConditionsCompliance with local regulations
2. Warranty01year or 100,000 km,from the date of commissioning whichever is earlier



For Huanghai Series Bus, we have big,mid,small three types, and also special type. Dimensions include 5m ~ 12m long, mixed power and electric power for your choice.
